Dual Locking Board Support - .137 Board Hole x .137 Chassis Hole
Dual Locking Board Support - .137 Board Hole x .137 Chassis Hole
SKU:01C-3f9f4f
Secure and versatile dual locking board support for circuit boards with .137 board hole and chassis hole.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Dual Locking Board Support - .137 Board Hole x .137 Chassis Hole
$39.99
Quantity: 1
Claim Your Seller Account
Dual Locking Board Support - .137 Board Hole x .137 Chassis Hole
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 01A Series Dual Locking Board Support features a mounting hole diameter of .137 inches for both board and chassis ends, making it ideal for securing circuit boards with a thickness ranging from .031 to .08 inches. These supports are releasable for easy repairs and come in a pack of 1000. Crafted from Nylon 66 UL94V-2 material (with UL94V-0 available), these supports are ASTM and RoHS compliant, ensuring high-quality and environmentally friendly performance. With a temperature range of -40 to 185F, these supports offer durability in various operating conditions.
Product Specifications

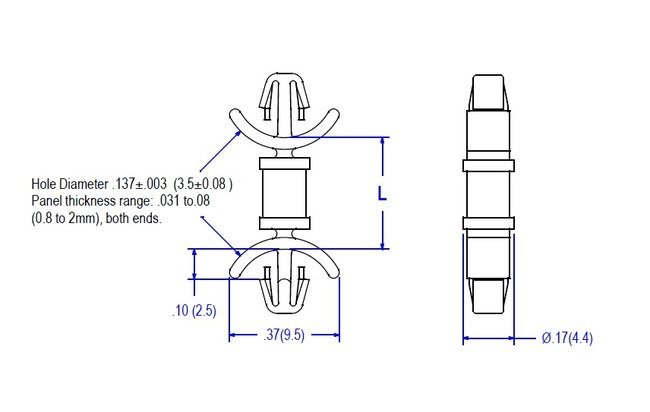

Specifications L 015
.875 (22.2) inches (mm)
