Dual Locking Board Support - .137 Board Hole x .137 Chassis Hole
Dual Locking Board Support - .137 Board Hole x .137 Chassis Hole
SKU:01C-d77d59
Enhance your circuit board setup with the 01A Series Dual Locking Board Support for efficient repairs and reliable performance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Dual Locking Board Support - .137 Board Hole x .137 Chassis Hole
$24.99
Quantity: 1
Claim Your Seller Account
Dual Locking Board Support - .137 Board Hole x .137 Chassis Hole
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

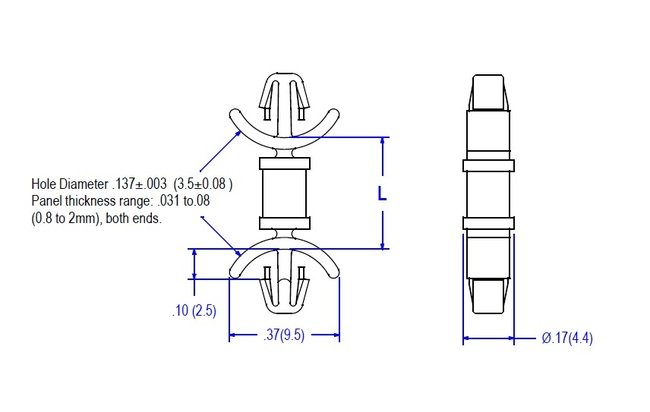

The 01A Series Dual Locking Board Support is engineered for precision with a mounting hole diameter of .137 inches (3.5mm) on both ends. Designed for .031-.08 Chassis Thickness, this board support is easily releasable for repairs, ensuring efficient maintenance. Crafted from Nylon 66 UL94V-2 material (UL94V-0 available), this product complies with UL File No: E41938, ASTM D 4066, and PA0113 standards, making it RoHS compliant and suitable for a temperature range of -40 to 185F (-40 to 85C). Upgrade your circuit board support with this reliable and durable solution.
Product Specifications
Specifications L 015
.375 (9.5) inches (mm)
