Dual Locking Board Support .137" Hole Nylon 66 UL94V-2
Dual Locking Board Support .137" Hole Nylon 66 UL94V-2
SKU:01C-0787de
Secure circuit boards with precision using 01A Series Board Support. Releasable design, Nylon 66 UL94V-2 material, UL File E41938, RoHS compliant.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Dual Locking Board Support .137" Hole Nylon 66 UL94V-2
$39.99
Quantity: 1
Claim Your Seller Account
Dual Locking Board Support .137" Hole Nylon 66 UL94V-2
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

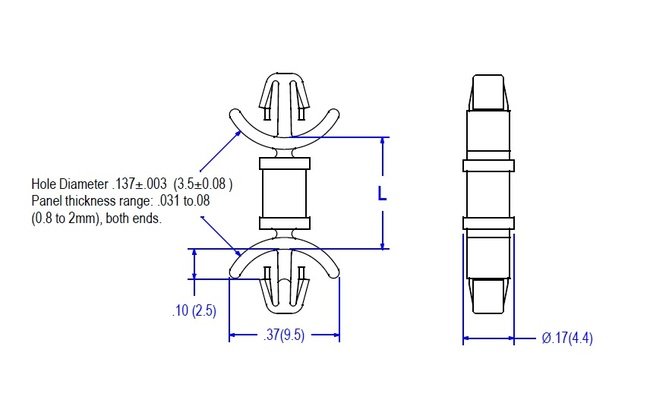

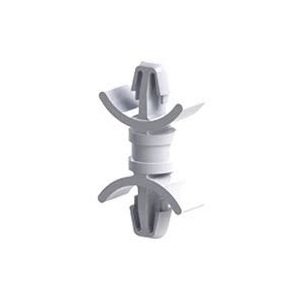

The 01A Series Dual Locking Board Support is designed for securing circuit boards with precision. This support features mounting holes with a diameter of .137 inches (3.5mm) on both ends, catering to chassis thickness ranging from .031 to .08 inches. It offers a releasable design for easy repairs, packaged conveniently in 1000/bag. Constructed from Nylon 66 UL94V-2 material (UL94V-0 available), this board support is compliant with UL File No E41938, ASTM D4066, PA0113, and RoHS standards. It operates within a temperature range of -40 to 185F (-40 to 85C), ensuring reliability in various environments.
Product Specifications
Specifications L 015
.437 (11.1) inches (mm)
