Dual Locking Board Support - .138 Board Hole x .138 Chassis Hole - Nylon 66
Dual Locking Board Support - .138 Board Hole x .138 Chassis Hole - Nylon 66
SKU:01C-f5d8c2

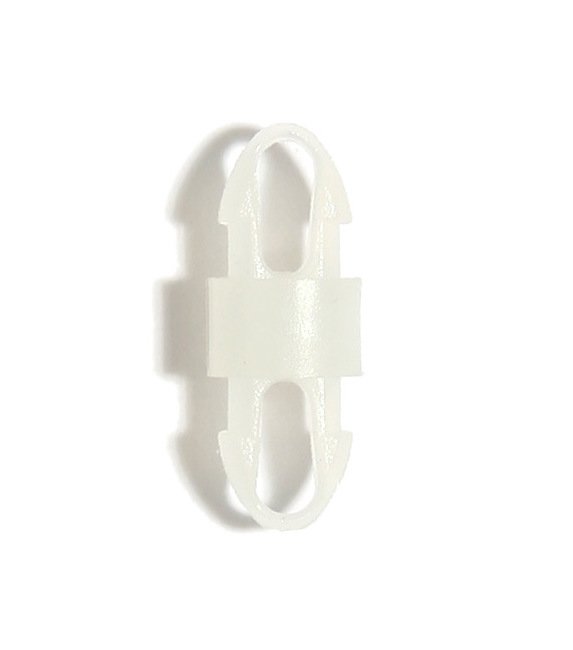

Securely hold circuit boards with the 51 Series Dual Locking Board Support. Teardrop head, .138-inch holes each end, Nylon 66 material, ASTM D 4066, RoHS Compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Dual Locking Board Support - .138 Board Hole x .138 Chassis Hole - Nylon 66
$49.99
Quantity: 1
Claim Your Seller Account
Dual Locking Board Support - .138 Board Hole x .138 Chassis Hole - Nylon 66
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 51 Series Dual Locking Board Support is a versatile component designed to securely hold circuit boards in place. Featuring a teardrop head with .138-inch diameter holes on both ends, this board support ensures stability and precise alignment. Made from Nylon 66 material that meets UL94V-2 standards (V-0 available upon request), this support is durable and reliable for a wide range of applications. With a temperature range of -40 to 185 F (-40 to 85 C), it offers exceptional performance in varying environments. The support is ASTM D 4066 and PA111 compliant, RoHS Compliant, and comes in a natural color. Each pack contains 1000 pieces for convenient stock management.
Product Specifications

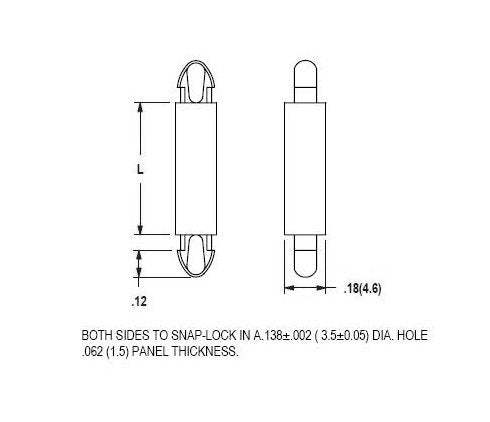

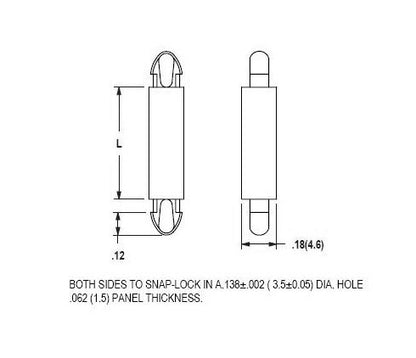

Specifications Dim L
.276 (7) inches (mm)
Specifications Hole Diameter
.138 (2.5) inches (mm)
Specifications Panel Thickness
.062 (1.5) inches (mm)
Specifications Remarks Hole Diameter
+/-.002
