Dual Locking Board Support - .156 Board Hole x .187 Chassis Hole, White
Dual Locking Board Support - .156 Board Hole x .187 Chassis Hole, White
SKU:01C-f3b4e5
Reliable dual locking board support for circuit boards with easy installation, Nylon 66 material, and RoHS compliance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Dual Locking Board Support - .156 Board Hole x .187 Chassis Hole, White
$29.99
Quantity: 1
Claim Your Seller Account
Dual Locking Board Support - .156 Board Hole x .187 Chassis Hole, White
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 00 Series - .156 Board Hole x .187 Chassis Hole Dual Locking Board Support offers reliable fastening for circuit boards with easy manual installation and reusability for quick repairs. Each support is made of Nylon 66 UL94V-2 material, ensuring durability and safety. This RoHS compliant board support has a temperature range of -40 to 185F (-40 to 85C), making it suitable for various environments. Optional UL94V-0 material available for enhanced fire safety. Packaged in convenient bags of 500, these supports meet ASTM D 4066 and PA0113 standards.
Ready to Grow Without Cash Flow Constraints?

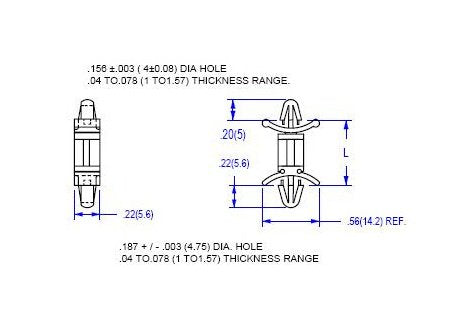

Product Specifications
Specifications Board Hole Diameter
.156 (4.0) inches (mm)
Specifications Chassis Hole Diameter
.187 (4.8) inches (mm)
Specifications Color
White
Specifications Dim L
.655 (16.6) inches (mm)
Specifications Material Code
UL94V-0
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
