Dual Locking Board Support .187 Board Hole x .187 Chassis Hole
Dual Locking Board Support .187 Board Hole x .187 Chassis Hole
SKU:01C-c3c9a0
Conveniently install the Dual Locking Board Support with .187 Board Hole x .187 Chassis Hole, ensuring durability and RoHS compliance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Dual Locking Board Support .187 Board Hole x .187 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
Dual Locking Board Support .187 Board Hole x .187 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dual Locking Board Support from our 19 Series is designed for convenient installation by hand, featuring a mounting hole diameter of .187 inches for both ends. Made of Nylon 66 UL94V-2 material, this product is releasable for repairs and RoHS compliant. With a temperature range of -40 to 185F, it offers durability and reliability in various environments. Each pack contains 500 supports, ensuring ample supply for your needs. Add 'X' to the end of the part number for UL94V-0 material option.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Board Hole Diameter
.187 (4.8) inches (mm)
Specifications Chassis Hole Diameter
.187 (4.8) inches (mm)
Specifications Color
Natural
Specifications Dim L
.375 (9.6) inches (mm)

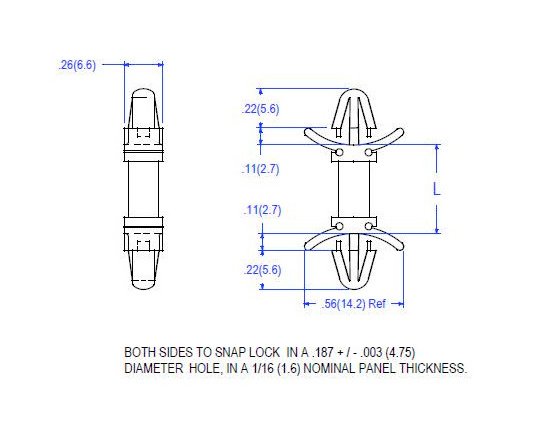

Specifications Fig No
2
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
