Dual Locking Board Support .187" for Circuit Board and Chassis, Nylon UL94V-2

Name: Dual Locking Board Support .187" for Circuit Board and Chassis, Nylon UL94V-2
Brand: All Electronics Hardware
SKU: 01C-7454b8
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-7454b8

Effortlessly install and repair circuit boards with the Dual Locking Board Support, featuring .187" mounting holes. RoHS compliant and durable for a temperature range of -40 to 185F.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 19 Series Dual Locking Board Support offers effortless installation by hand with a mounting hole diameter of .187 inches, suitable for both board and chassis ends. Constructed from Nylon 66 UL94V-2 material, this support is not only releasable for easy repairs but also RoHS compliant and capable of withstanding a temperature range of -40 to 185F. Ideal for circuit board supports, each pack contains 500 units, ensuring durability and reliability for your projects.

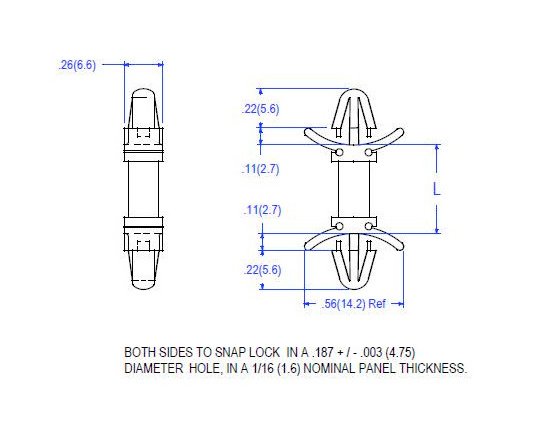

Product Specifications

Specifications Board Hole Diameter

.187 (4.8) inches (mm)

Specifications Chassis Hole Diameter

.187 (4.8) inches (mm)

Specifications Color

Natural

Specifications Dim L

.812 (20.6) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.
