Dual Locking Board Support 28 Series
Dual Locking Board Support 28 Series
SKU:01C-2d0c54
Reliable dual locking board support for circuit boards, RoHS compliant, suitable for -40 to 185F, 1000-piece pack
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Dual Locking Board Support 28 Series
$99.99
Quantity: 1
Claim Your Seller Account
Dual Locking Board Support 28 Series
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dual Locking Board Support from the 28 Series offers reliable support for circuit boards with teardrop heads featuring a .100-inch diameter mounting hole on both ends. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this product is RoHS compliant and suitable for a temperature range of -40 to 185F (-40 to 85C). Each pack contains 1000 pieces, ensuring cost-effective procurement for institutional needs.

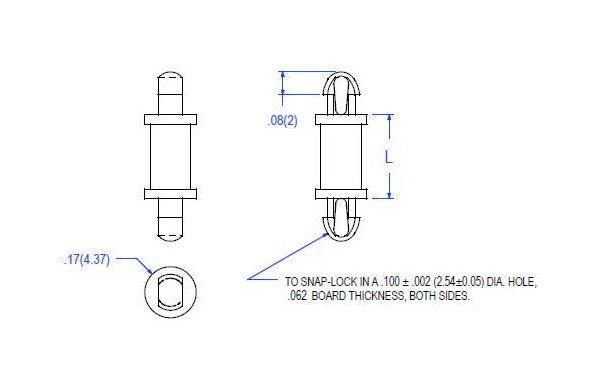

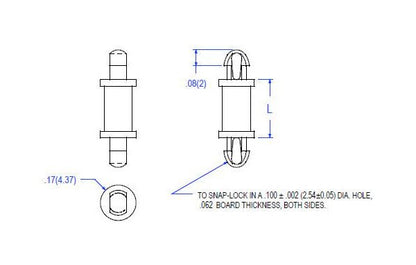

Product Specifications
Specifications Dim D
.172 (4.4) inches (mm)
Specifications Dim L
.187 (4.8) inches (mm)
Specifications Hole Diameter
.100 (2.54) inches (mm)
Specifications Material Code
UL94V-0
Specifications Panel Thickness
.064 (1.63) inches (mm)
Specifications Remarks Hole Diameter
Hole Diameter is for both ends.
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
