Dual Locking Board Support - Nylon .156 Board Hole x .187 Chassis Hole
Dual Locking Board Support - Nylon .156 Board Hole x .187 Chassis Hole
SKU:01C-c52ad5
Reliable Dual Locking Board Support for circuit boards, easy installation and repairs.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Dual Locking Board Support - Nylon .156 Board Hole x .187 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
Dual Locking Board Support - Nylon .156 Board Hole x .187 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 00 Series Dual Locking Board Support offers a convenient solution for securing circuit boards with ease, allowing for quick installations and easy release for repairs. Made from durable Nylon 66 UL94V-2 material (UL94V-0 available), this support ensures reliability and safety. With a temperature range of -40 to 185F (-40 to 85C), it is suitable for diverse operating environments. Each pack contains 500 supports, making it ideal for bulk purchases. This support complies with ASTM, RoHS, and can meet UL94V-0 requirements upon request.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

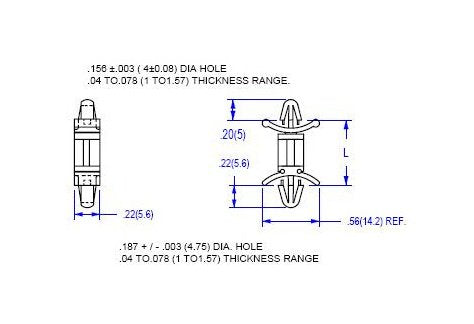

Specifications Board Hole Diameter
.156 (4.0) inches (mm)
Specifications Chassis Hole Diameter
.187 (4.8) inches (mm)
Specifications Color
White
Specifications Dim L
.968 (24.6) inches (mm)
Specifications Material Code
UL94V-0
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
