Dual Locking Board Support - Teardrop Head
Dual Locking Board Support - Teardrop Head
SKU:01C-4b57a5
Secure circuit board support with dual locking teardrop head design, Nylon 66 material, RoHS compliant, ASTM and UL certified.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Dual Locking Board Support - Teardrop Head
$59.99
Quantity: 1
Claim Your Seller Account
Dual Locking Board Support - Teardrop Head
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 28 Series Dual Locking Board Support features a teardrop head design with a .100 dia. mounting hole on both ends, providing secure support for circuit boards. Made of durable Nylon 66 UL94V-2 material (UL94V-0 available), this support is RoHS compliant and offers a temperature range of -40 to 185F. Each pack contains 1000 pieces, ensuring ample supply for various projects. The support is ASTM and UL certified, meeting stringent industry standards for reliability and performance.
Ready to Grow Without Cash Flow Constraints?

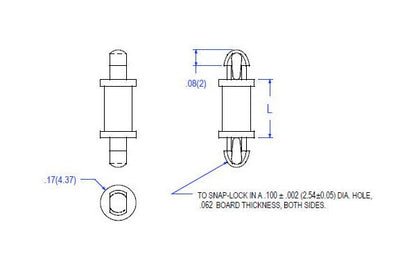

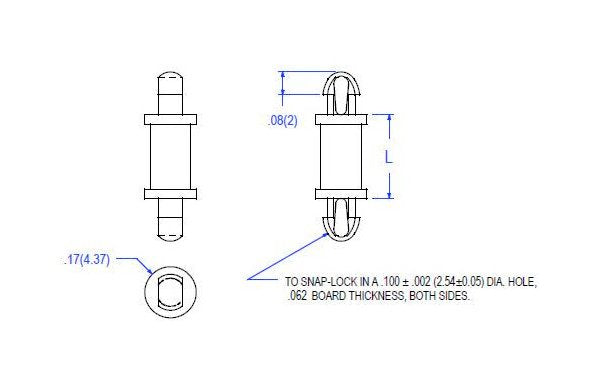

Product Specifications
Specifications Dim D
.172 (4.4) inches (mm)
Specifications Dim L
.062 (1.6) inches (mm)
Specifications Hole Diameter
.100 (2.54) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.064 (1.63) inches (mm)
Specifications Remarks Hole Diameter
Hole Diameter is for both ends.
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
