Dual Locking Board Support - Teardrop Head (.138 Board Hole, .138 Chassis Hole)

Name: Dual Locking Board Support - Teardrop Head (.138 Board Hole, .138 Chassis Hole)
Brand: All Electronics Hardware
SKU: 01C-dae5bd
Price: 49.99 USD
Availability: OutOfStock

SKU:01C-dae5bd

Securely support circuit boards with our Dual Locking Board Support. Nylon material, ASTM D4066 compliant, 1000/bag pack.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

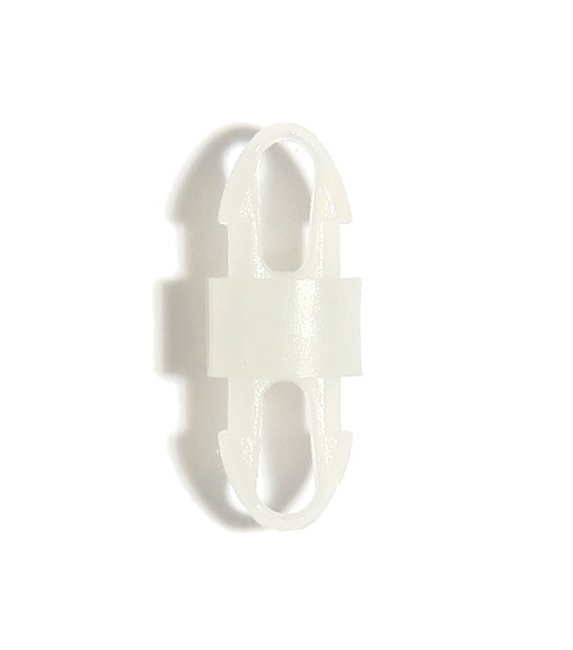

The Dual Locking Board Support from our 51 Series features a teardrop head with a .138 diameter hole at both ends, providing secure support for circuit boards. Made of Nylon 66 UL94V-2 material (V-0 available), this support is ASTM D4066 and PA111 compliant. With a temperature range of -40 to 185 F, it ensures reliability in various environments. Each pack contains 1000 supports, ideal for bulk applications in industrial settings.

Product Specifications

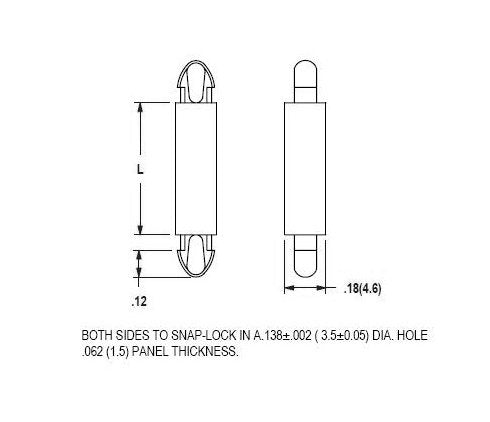

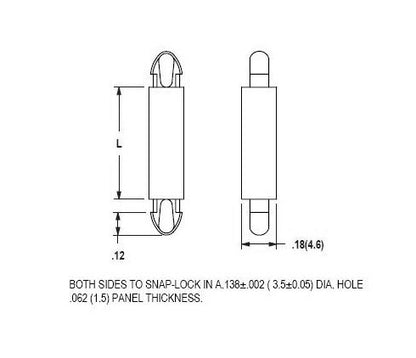

Specifications Dim L

.314 (8) inches (mm)

Specifications Hole Diameter

.138 (2.5) inches (mm)

Specifications Panel Thickness

.062 (1.5) inches (mm)

Specifications Remarks Hole Diameter

+/-.002
