Dual Locking Board Support - Teardrop Head .138" Hole
Dual Locking Board Support - Teardrop Head .138" Hole
SKU:01C-867862
Secure your circuit boards with the 51 Series Dual Locking Board Support featuring teardrop head and .138" hole. RoHS compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Dual Locking Board Support - Teardrop Head .138" Hole
$24.99
Quantity: 1
Claim Your Seller Account
Dual Locking Board Support - Teardrop Head .138" Hole
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

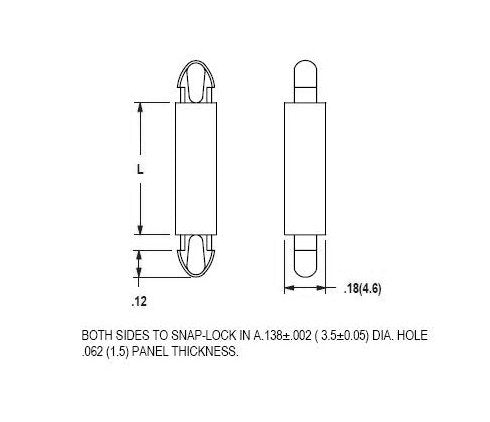

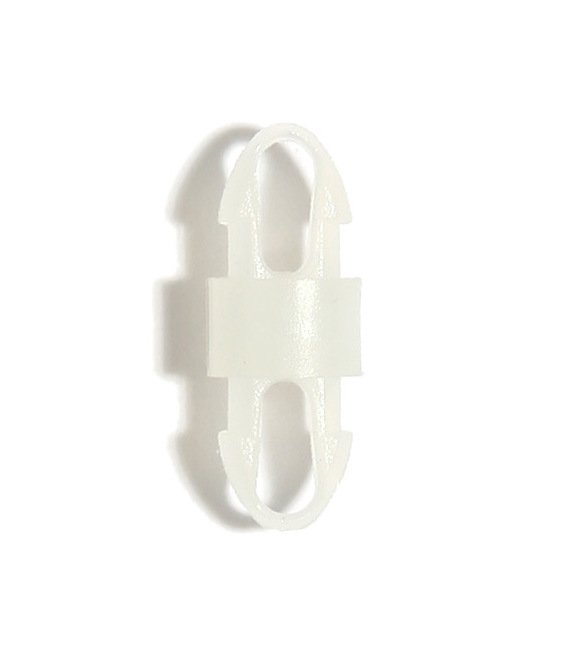

The 51 Series Dual Locking Board Support with teardrop head features a .138" diameter hole at both ends, perfect for secure fastening on circuit boards. Made of Nylon 66 UL94V-2 material (V-0 available), this board support is UL recognized with file# E41938 and compliant with RoHS regulations. With a temperature range of -40 to 185 F (-40 to 85 C), it offers reliable performance in varied environments. The precise design with a panel thickness of .062" ensures stability and accuracy for your electronic assemblies.
Product Specifications
Specifications Dim L
.236 (6) inches (mm)
Specifications Hole Diameter
.138 (2.5) inches (mm)
Specifications Panel Thickness
.062 (1.5) inches (mm)
Specifications Remarks Hole Diameter
+/-.002
