Dual Locking Board Support with .138 Board Hole x .138 Chassis Hole

Name: Dual Locking Board Support with .138 Board Hole x .138 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-8fee89
Price: 39.99 USD
Availability: OutOfStock

SKU:01C-8fee89

Secure circuit board support with dual locking mechanism & .138" hole. RoHS compliant, ASTM D 4066, PA111. Pack of 1000.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

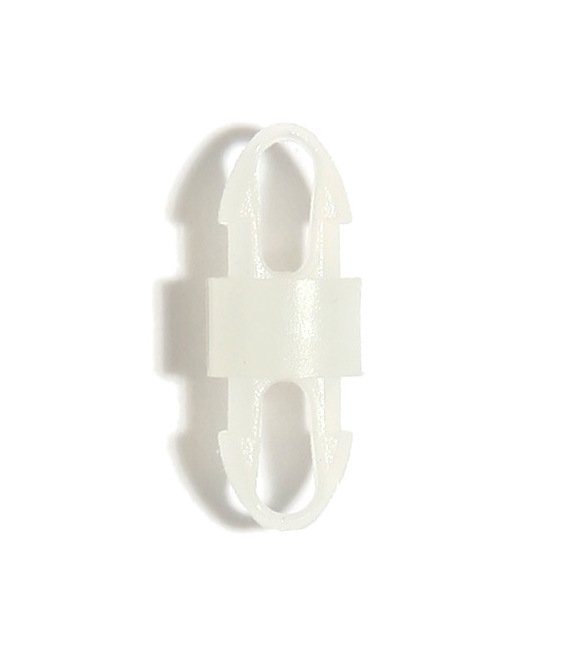

The 51 Series Dual Locking Board Support features a teardrop head design with a .138-inch diameter hole on both ends, ensuring secure fastening for circuit boards. Made of Nylon 66 UL94V-2 material (V-0 option available), this support is RoHS compliant and meets ASTM D 4066, PA111 standards. With a temperature range of -40 to 185°F (-40 to 85°C), it is ideal for various environments. Each pack contains 1000 supports, providing ample supply for installations.

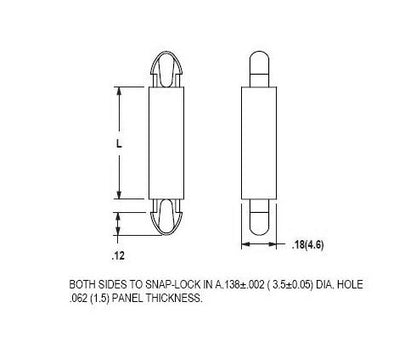

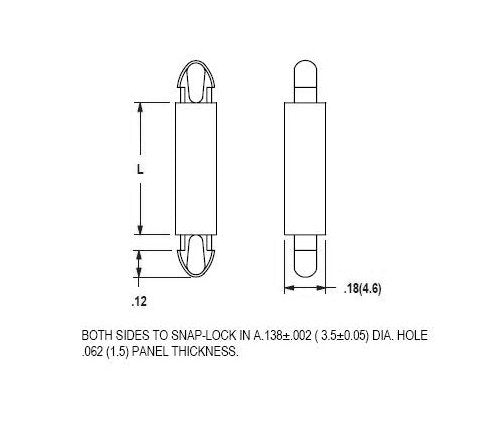

Product Specifications

Specifications Dim L

.118 (3) inches (mm)

Specifications Hole Diameter

.138 (2.5) inches (mm)

Specifications Panel Thickness

.062 (1.5) inches (mm)

Specifications Remarks Hole Diameter

+/-.002
