Dual Locking Board Support with Teardrop Head
Dual Locking Board Support with Teardrop Head
SKU:01C-3d5f53
Reliable Dual Locking Board Support for secure circuit board mounting. Nylon 66 material, RoHS compliant, ASTM D4066 certified.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Dual Locking Board Support with Teardrop Head
$29.99
Quantity: 1
Claim Your Seller Account
Dual Locking Board Support with Teardrop Head
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

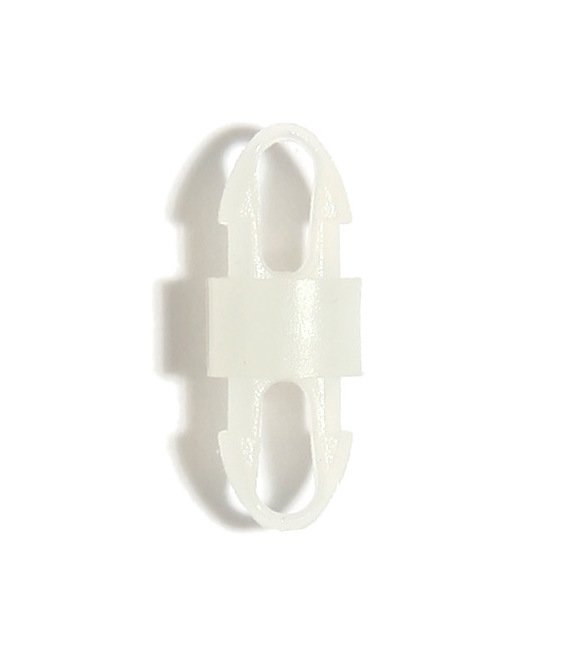

The 51 Series Dual Locking Board Support is a reliable solution for securely mounting circuit boards. Featuring a teardrop head design with .138 dia. holes at both ends, this support is made of Nylon 66 UL94V-2 material (V-0 available) ensuring durability and flame resistance. With a temperature range of -40 to 185 F, it offers stability in various environments. Each pack contains 1000 supports, ideal for large-scale installations. Compliant with RoHS regulations and ASTM D4066, PA111 standards, this support is a practical choice for applications requiring precision and reliability.

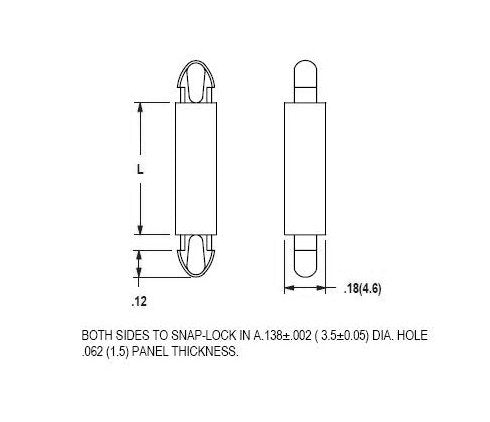

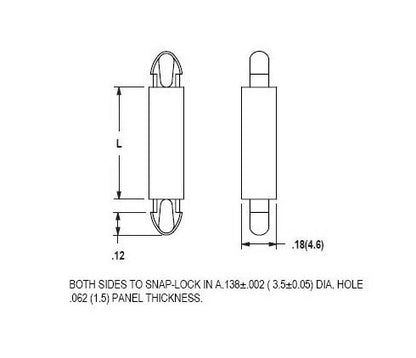

Product Specifications
Specifications Dim L
.394 (10) inches (mm)
Specifications Hole Diameter
.138 (2.5) inches (mm)
Specifications Panel Thickness
.062 (1.5) inches (mm)
Specifications Remarks Hole Diameter
+/-.002
