Dual Locking Board Support with Teardrop Head
Dual Locking Board Support with Teardrop Head
SKU:01C-aa5b85

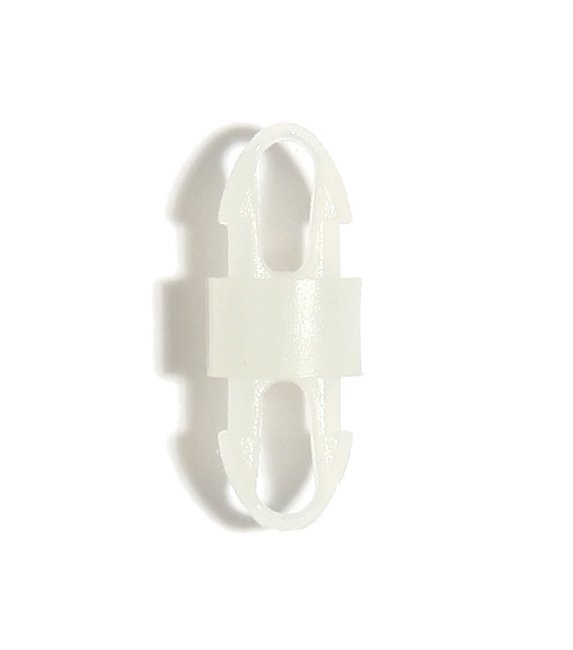

Secure your circuit boards with the 51 Series Dual Locking Board Support featuring teardrop head design and .138-inch hole diameter. Nylon 66 UL94V-2 material, ASTM D 4066 compliant.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Dual Locking Board Support with Teardrop Head
$39.99
Quantity: 1
Claim Your Seller Account
Dual Locking Board Support with Teardrop Head
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 51 Series Dual Locking Board Support is designed with a teardrop head featuring a .138-inch diameter hole on both ends, ensuring secure placement on circuit boards. Made of Nylon 66 UL94V-2 material (V-0 available), this support is durable and reliable for various applications. With a temperature range of -40 to 185 F (-40 to 85 C), it offers resilience in diverse environments. Each pack contains 1000 pieces, providing ample support for circuit board assemblies. ASTM D 4066 and PA111 compliant, this board support meets stringent industry standards for quality and safety.
Ready to Grow Without Cash Flow Constraints?

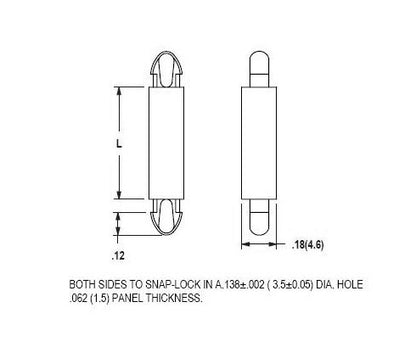

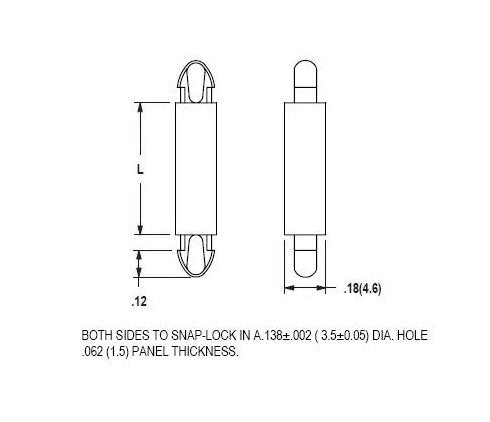

Product Specifications
Specifications Dim L
.472 (12) inches (mm)
Specifications Hole Diameter
.138 (2.5) inches (mm)
Specifications Panel Thickness
.062 (1.5) inches (mm)
Specifications Remarks Hole Diameter
+/-.002
