Dual Locking Board Support with Teardrop Head
Dual Locking Board Support with Teardrop Head
SKU:01C-19d27e

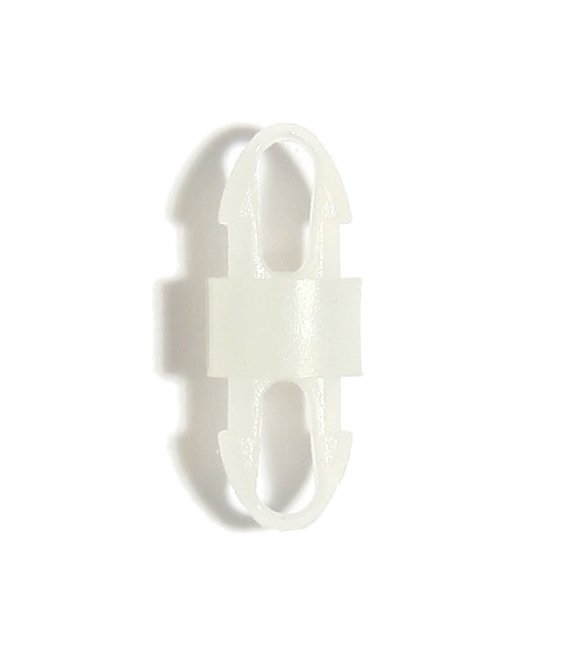

Secure circuit boards with ease using the 51 Series Dual Locking Board Support. Durable Nylon 66 construction, RoHS compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Dual Locking Board Support with Teardrop Head
$29.99
Quantity: 1
Claim Your Seller Account
Dual Locking Board Support with Teardrop Head
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

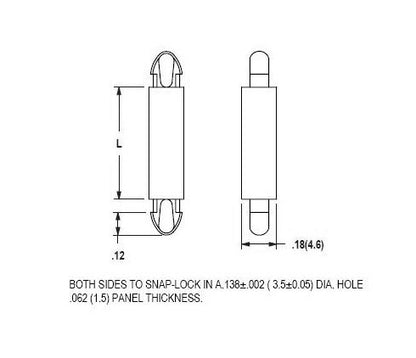

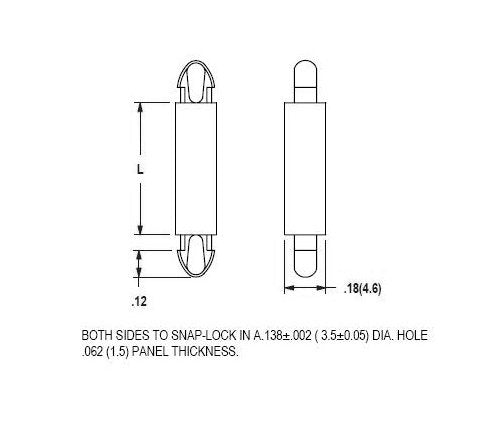

The 51 Series Dual Locking Board Support features a teardrop head design with a .138-inch hole on both ends, ideal for securing circuit boards. Made of Nylon 66 UL94V-2 material, this support is durable and RoHS compliant, ensuring safety and reliability. With a temperature range of -40 to 185 F (-40 to 85 C), it offers versatility in various environments. ASTM D 4066 and PA111 certified, this support meets stringent industry standards, providing peace of mind for institutional buyers requiring top-notch quality and performance.
Product Specifications
Specifications Dim L
.709 (18) inches (mm)
Specifications Hole Diameter
.138 (2.5) inches (mm)
Specifications Panel Thickness
.062 (1.5) inches (mm)
Specifications Remarks Hole Diameter
+/-.002
