Dual Locking Circuit Board Support: .138 Board Hole x .138 Chassis Hole

Name: Dual Locking Circuit Board Support: .138 Board Hole x .138 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-314210
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-314210

Dual Locking Circuit Board Support for stable and secure mounting. Nylon 66 material, RoHS compliant, .138-inch holes, ASTM, and UL certified.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

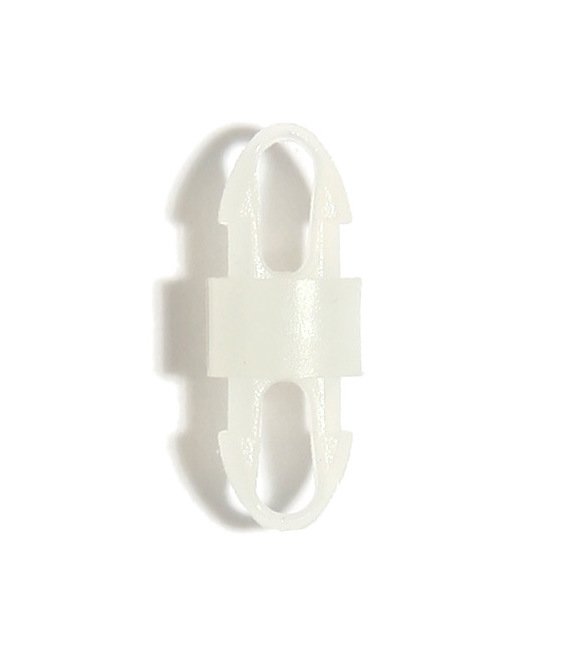

Enhance circuit board stability with our Dual Locking Circuit Board Support featuring a teardrop head design and .138-inch diameter holes at both ends. Made from Nylon 66 UL94V-2 material, this support is RoHS compliant and withstands temperatures from -40 to 185F (-40 to 85C). Each support is .551 inches long and suitable for panel thicknesses of up to .062 inches, ensuring precise and secure board mounting. Add 'X' to the part number for V-0 fire rating. ASTM and UL certified.

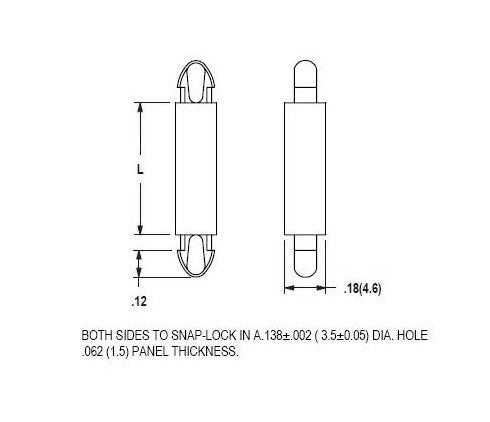

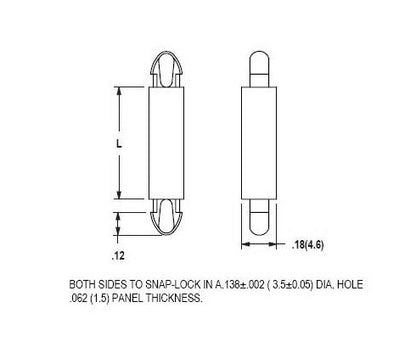

Product Specifications

Specifications Dim L

.551 (14) inches (mm)

Specifications Hole Diameter

.138 (2.5) inches (mm)

Specifications Panel Thickness

.062 (1.5) inches (mm)

Specifications Remarks Hole Diameter

+/-.002

Dual Locking Circuit Board Support: .138 Board Hole x .138 Chassis Hole
