Dual Locking Circuit Board Support - .138 Board Hole x .138 Chassis Hole
Dual Locking Circuit Board Support - .138 Board Hole x .138 Chassis Hole
SKU:01C-c56de1
Dual Locking Circuit Board Support with .138 Board Hole x .138 Chassis Hole - Nylon 66 Material, ASTM Compliant, Temp Range: -40 to 185 F
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Dual Locking Circuit Board Support - .138 Board Hole x .138 Chassis Hole
$59.99
Quantity: 1
Claim Your Seller Account
Dual Locking Circuit Board Support - .138 Board Hole x .138 Chassis Hole
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

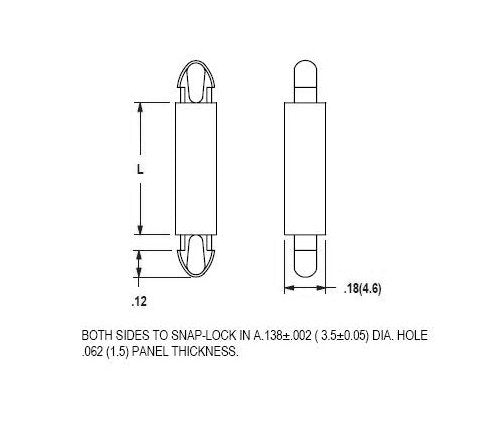

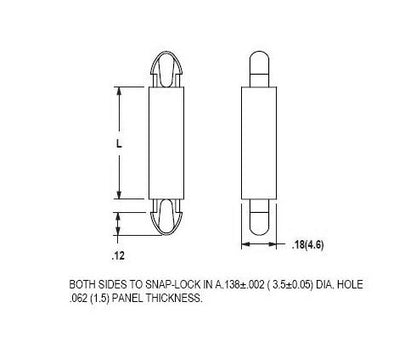

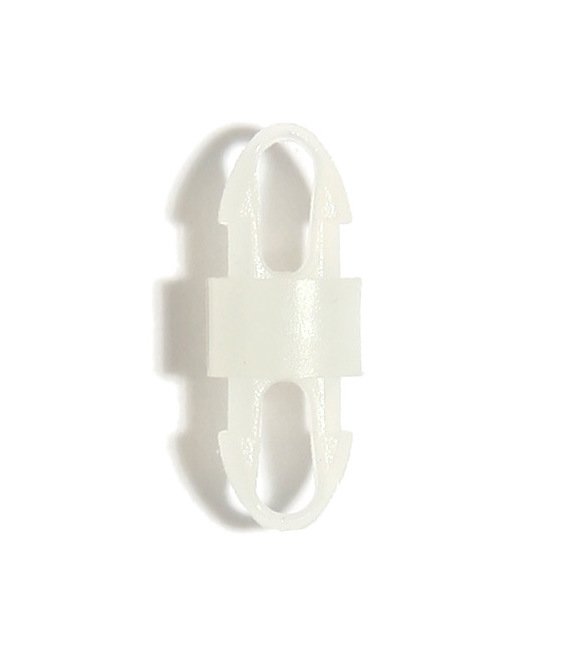

The 51 Series Dual Locking Circuit Board Support features a teardrop head with a .138-inch diameter hole at both ends, designed for secure mounting on circuit boards. Made of high-quality Nylon 66 UL94V-2 material (V-0 available), this support is ASTM D 4066 and PA111 compliant. With a temperature range of -40 to 185 F (-40 to 85 C), it ensures reliable performance in various environments. Each pack contains 1000 supports, offering durability and efficiency in circuit board applications.
Product Specifications
Specifications Dim L
.078 (2) inches (mm)
Specifications Hole Diameter
.138 (2.5) inches (mm)
Specifications Panel Thickness
.062 (1.5) inches (mm)
Specifications Remarks Hole Diameter
+/-.002
