Dual Locking Mini Support Post - Nylon 66 UL94V-0
Dual Locking Mini Support Post - Nylon 66 UL94V-0
SKU:01C-9326d7
Secure circuit board mounting post with Nylon 66 UL94V-0 material, ASTM D 4066, PA111 certified, RoHS compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Dual Locking Mini Support Post - Nylon 66 UL94V-0
$29.99
Quantity: 1
Claim Your Seller Account
Dual Locking Mini Support Post - Nylon 66 UL94V-0
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

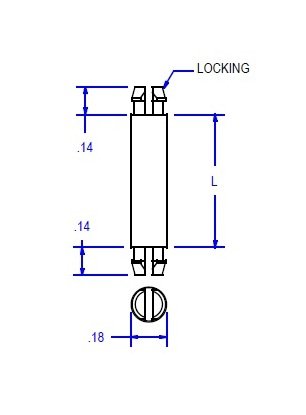

The Dual Locking Mini Support Post in the 30 Series features a .152 inches Board Hole x .152 inches Chassis Side for secure circuit board mounting. Made of Nylon 66 UL94V-0 material, this post is durable and RoHS compliant, ensuring safety and performance in a wide temperature range from -40 to 185F. With ASTM D 4066 and PA111 certifications, it guarantees reliability and quality for diverse applications, with options for UL94V-2 available upon request.
Product Specifications
Specifications Board Hole Diameter
.152 ± .005 (3.9) inches (mm)
Specifications Dim L
.625 ± .010 (15.9) inches (mm)
Specifications Material Code
UL94V-0
Specifications Panel Thickness
.063 ± .005 (1.6) inches (mm)
Specifications Remarks Board Hole Diameter
Board Hole Diameter is for both ends.
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
