Dual Locking Mini Support Post - Nylon 66 UL94V-0 Material
Dual Locking Mini Support Post - Nylon 66 UL94V-0 Material
SKU:01C-452a66
Get the Dual Locking Mini Support Post for secure circuit board mounting. Made from Nylon 66 UL94V-0 material. Compliant with RoHS standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Dual Locking Mini Support Post - Nylon 66 UL94V-0 Material
$24.99
Quantity: 1
Claim Your Seller Account
Dual Locking Mini Support Post - Nylon 66 UL94V-0 Material
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

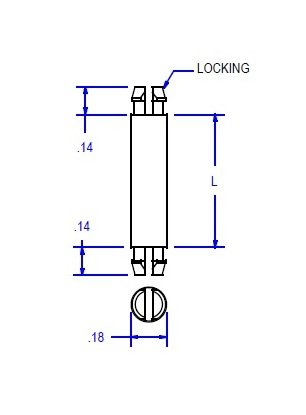

The 30 Series: .152 Board Hole x .152 Chassis Side dual locking mini support post is crafted from high-quality Nylon 66 UL94V-0 material, ensuring durability and reliability. Designed for circuit board supports, this support post features a precise board hole diameter of .152 inches and a panel thickness of .063 inches. With a temperature range from -40 to 185F, it offers versatile functionality in various environments. Compliant with RoHS regulations, ASTM D 4066, PA111, and UL File No. E70062, this support post guarantees safety and quality. Upgrade your equipment with this sturdy and dependable support solution.
Product Specifications
Specifications Board Hole Diameter
.152 ± .005 (3.9) inches (mm)
Specifications Dim L
.500 ± .010 (12.7) inches (mm)
Specifications Material Code
UL94V-0
Specifications Panel Thickness
.063 ± .005 (1.6) inches (mm)
Specifications Remarks Board Hole Diameter
Board Hole Diameter is for both ends.
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
