Dual Locking Mini Support Post - Nylon 66 UL94V-0

Name: Dual Locking Mini Support Post - Nylon 66 UL94V-0
Brand: All Electronics Hardware
SKU: 01C-9d1202
Price: 49.99 USD
Availability: OutOfStock

SKU:01C-9d1202

Secure mini support post for circuit boards, Nylon 66 UL94V-0 material, RoHS compliant, ASTM certified. Pack of 1000 posts.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Dual Locking Mini Support Post in Natural color from our 30 Series provides secure mounting for circuit boards with a .152-inch board hole diameter and .152-inch chassis side. Made of Nylon 66 UL94V-0 material (UL94V-2 also available), this post ensures durability and reliability in diverse environments. RoHS compliant and ASTM certified, it offers a -40 to 185F temperature range. Each pack contains 1000 posts, ideal for institutional and consumer needs.

Product Specifications

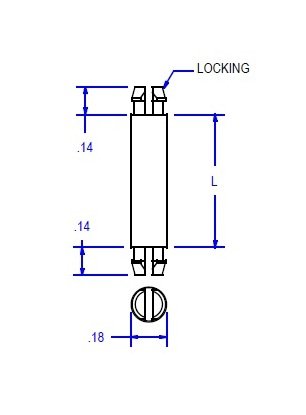

Specifications Board Hole Diameter

.152 ± .005 (3.9) inches (mm)

Specifications Dim L

.437 ± .010 (11.1) inches (mm)

Specifications Material Code

UL94V-0

Specifications Panel Thickness

.063 ± .005 (1.6) inches (mm)

Specifications Remarks Board Hole Diameter

Board Hole Diameter is for both ends.

Specifications Remarks Panel Thickness

Panel thickness is for both ends.

Dual Locking Mini Support Post - Nylon 66 UL94V-0
