Dual Locking Nylon Board Support (.125 Board Hole x .125 Chassis Hole)

Name: Dual Locking Nylon Board Support (.125 Board Hole x .125 Chassis Hole)
Brand: All Electronics Hardware
SKU: 01C-f1313e
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-f1313e

Secure circuit boards effortlessly with the 52 Series Dual Locking Nylon Board Support. Easy to install by hand, with .125 inches (3.18mm) hole diameter, durable Nylon 66 UL94V-2 material. RoHS compliant, ASTM D 4066, PA0113 certified.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 52 Series Dual Locking Nylon Board Support is the ideal solution for securing circuit boards with precision. Featuring a mounting hole diameter of .125 inches (3.18mm) on both ends, this support is easily installed by hand, allowing for quick and efficient assembly. Made of Nylon 66 UL94V-2 material (with UL94V-0 option available), this support is durable and releasable for easy repairs. With a temperature range of -40 to 185F (-40 to 85C), it offers reliability in various operating conditions. Compliant with RoHS standards and ASTM D 4066, PA0113, this board support ensures quality and safety in electronic applications.

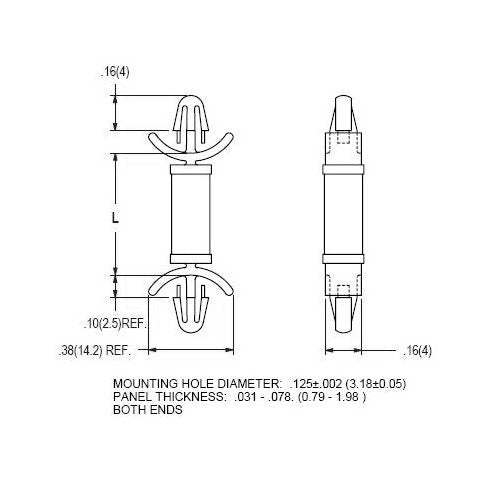

Product Specifications

Specifications Board Hole Diameter

.125 (3.18) inches (mm)

Specifications Chassis Hole Diameter

.125 (3.18) inches (mm)

Specifications Dim L

.563 (14.3) inches (mm)

Specifications Panel Thickness

.031-.078 (.8-.1.98) Both Ends inches (mm)
