Dual Locking Nylon Board Support .156 Board Hole x .187 Chassis Hole - Pack of 500

Name: Dual Locking Nylon Board Support .156 Board Hole x .187 Chassis Hole - Pack of 500
Brand: All Electronics Hardware
SKU: 01C-77b19e
Price: 49.99 USD
Availability: OutOfStock

SKU:01C-77b19e

Premium nylon board supports with dual locking mechanism and ASTM/RoHS compliance. Easy to install, ideal for circuit boards. Pack of 500.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 00 Series Dual Locking Nylon Board Support offers a reliable and easily installable solution for circuit board supports. Engineered with precision, these supports can be released for repairs without hassle. Made from durable Nylon 66 UL94V-2 material, with UL94V-0 option available, this product is ASTM and RoHS compliant, ensuring safety and performance. With a temperature range of -40 to 185F (-40 to 85C), these board supports are versatile and ideal for various applications. Each pack contains 500 units to meet your institutional procurement needs.

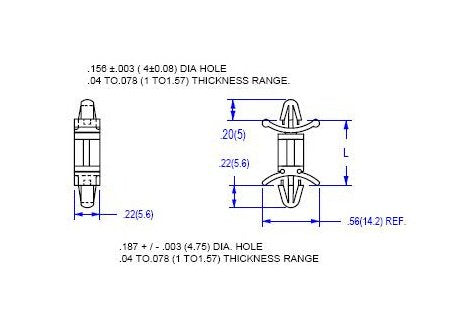

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Chassis Hole Diameter

.187 (4.8) inches (mm)

Specifications Color

Natural

Specifications Dim L

1.154 (29.3) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.

Dual Locking Nylon Board Support .156 Board Hole x .187 Chassis Hole - Pack of 500
