Dual Locking Nylon Board Supports - .098 Board Hole x .098 Chassis Hole
Dual Locking Nylon Board Supports - .098 Board Hole x .098 Chassis Hole
SKU:01C-a1b373
Ensure circuit board stability with our Dual Locking Nylon Board Supports. Teardrop head design, made of Nylon 66 material. Pack of 1000, RoHS compliant.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Dual Locking Nylon Board Supports - .098 Board Hole x .098 Chassis Hole
$59.99
Quantity: 1
Claim Your Seller Account
Dual Locking Nylon Board Supports - .098 Board Hole x .098 Chassis Hole
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance circuit board stability with our Dual Locking Nylon Board Supports from the 50 Series. Featuring a teardrop head design with a .098-inch diameter hole on both ends, these supports are crafted from high-quality Nylon 66 UL94V-2 material. Each pack contains 1000 supports, ensuring efficient installation for your projects. With a temperature range of -40 to 185°F, these supports offer reliable performance in various environments, meeting ASTM D 4066 and RoHS compliance standards.

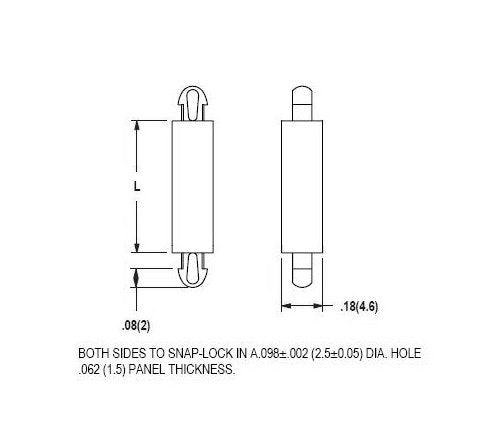

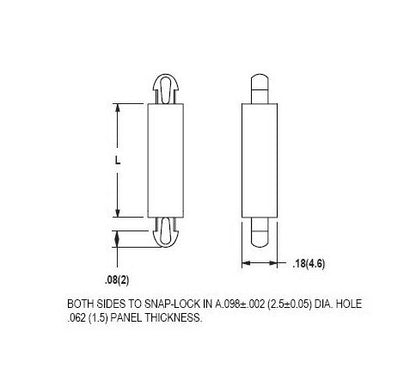

Product Specifications
Specifications Dim L
.551 (14mm) +/- .015 inches (mm)
Specifications Hole Diameter
.098 (2.5mm) Both Ends inches (mm)
Specifications Panel Thickness
.062 (1.5mm) Both Ends inches (mm)
Specifications Remarks Hole Diameter
+/-.002
