Dual Locking Nylon Board Supports, .138 Board Hole x .138 Chassis Hole, 1000-Pack
Dual Locking Nylon Board Supports, .138 Board Hole x .138 Chassis Hole, 1000-Pack
SKU:01C-97100f
Secure circuit boards with Dual Locking Nylon Board Supports. Teardrop head design, RoHS compliant, ideal for panel thickness of .062 inches.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Dual Locking Nylon Board Supports, .138 Board Hole x .138 Chassis Hole, 1000-Pack
$49.99
Quantity: 1
Claim Your Seller Account
Dual Locking Nylon Board Supports, .138 Board Hole x .138 Chassis Hole, 1000-Pack
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

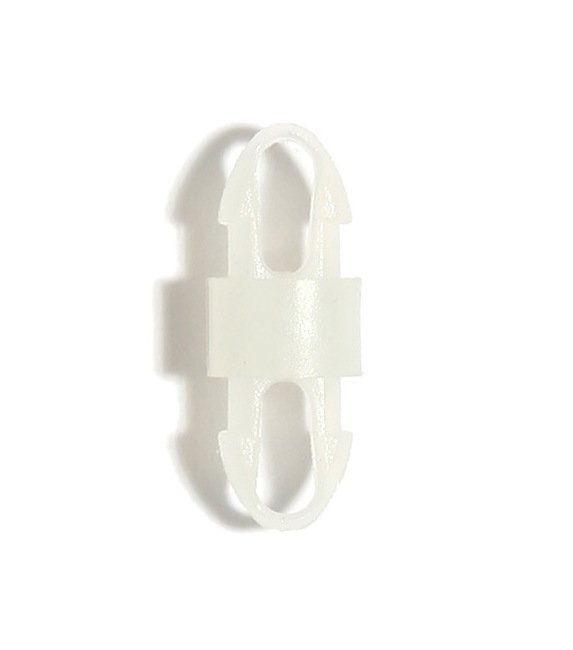

The 51 Series Dual Locking Board Supports feature a teardrop head design with a .138 diameter hole on both ends, providing secure mounting for circuit boards. Made of Nylon 66 UL94V-2 material, these supports are RoHS compliant and suitable for a temperature range of -40 to 185 F (-40 to 85 C). Each support measures .630 inches in length with a hole diameter of .138 inches and is designed for panel thickness of .062 inches (+/-.002 tolerance). Ensure stability and reliability in your electronic assemblies with these high-quality board supports.

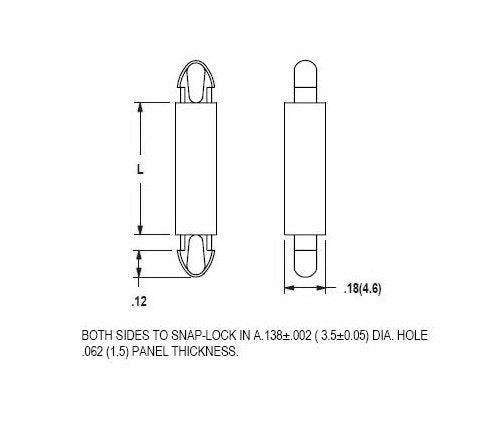

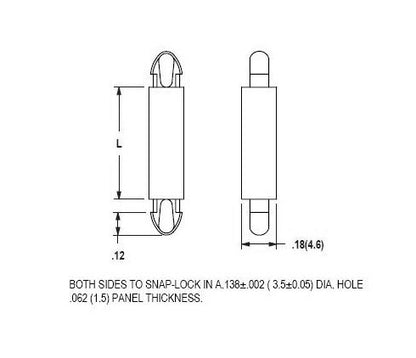

Product Specifications
Specifications Dim L
.630 (16) inches (mm)
Specifications Hole Diameter
.138 (2.5) inches (mm)
Specifications Panel Thickness
.062 (1.5) inches (mm)
Specifications Remarks Hole Diameter
+/-.002
