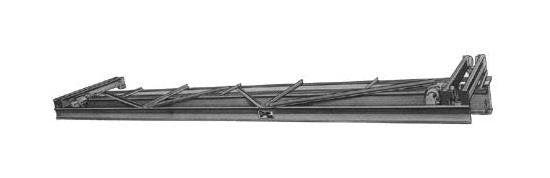

Dual Motor Driven Underhung Single Girder Crane
Dual Motor Driven Underhung Single Girder Crane
SKU:REL-92a39f
Powerful 5-ton Dual Motor Underhung Crane for heavy-duty lifting in extreme conditions. Motorized for efficiency.
Regular price
$17,999.00
Regular price
Sale price
$17,999.00
Unit price
per
Initiate Order
Dual Motor Driven Underhung Single Girder Crane
$17,999.00
Quantity: 1
Claim Your Seller Account
Dual Motor Driven Underhung Single Girder Crane
$17,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dual Motor Driven Underhung Single Girder Crane offers exceptional lifting capabilities with a 5-ton capacity and a span of 50 feet, making it ideal for heavy-duty applications. Featuring a W24 x 94.0 girder size and robust construction, this crane ensures stability and durability in extreme conditions. With top running, underhung, and single girder design, it suits indoor and outdoor use. Its motorized operation enhances efficiency, while complying with industry standards for reliability and performance.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
5 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
8930 lbs.

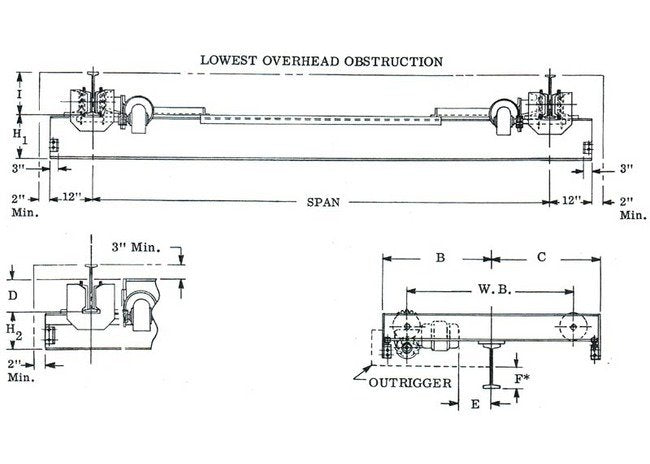

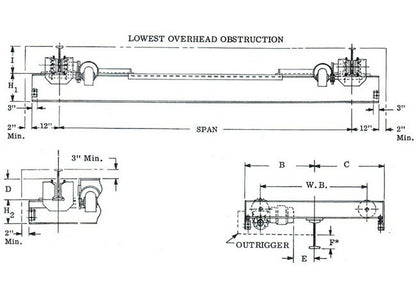

Specifications Dimension B
4'-7"
Specifications Dimension C
4'-6"
Specifications Dimension D
12 inches
Specifications Dimension E
27 inches
Specifications Dimension F
10 inches
Specifications Dimension H1
25 inches
Specifications Dimension H2
12 inches
Specifications Electric
&nbps;
Specifications Girder Size
W24 x 94.0
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Max Runway Rail
S18 x 54.7
Specifications Min Runway Rail
S12 x 31.8
Specifications Model
Model USD Motorized Cranes
Specifications Outrigger
Structural
Specifications Span
50'-0"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Base
7'-6"
Specifications Wheel Diameter
8 1/2 inches
Specifications Wheel Load Per Pair
7835 lbs.
