Dual Motor Underhung Single Girder Crane
Dual Motor Underhung Single Girder Crane
SKU:REL-93bbd9
Enhanced dual motor underhung crane for superior lifting in extreme conditions. 2-ton capacity with top-running design.
Regular price
$7,999.00
Regular price
Sale price
$7,999.00
Unit price
per
Initiate Order
Dual Motor Underhung Single Girder Crane
$7,999.00
Quantity: 1
Claim Your Seller Account
Dual Motor Underhung Single Girder Crane
$7,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior lifting capabilities with our Dual Motor Underhung Single Girder Crane. Designed for extreme conditions, this crane features Model USD Motorized Cranes with a 2-ton capacity, S18 x 54.7 girder size, and a span of 32'-6". With dimensions meticulously engineered for stability and safety, this top-running, underhung crane is suitable for indoor and outdoor use. Trust in its robust construction and innovative features for reliable performance in any setting.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
2 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
3046 lbs.

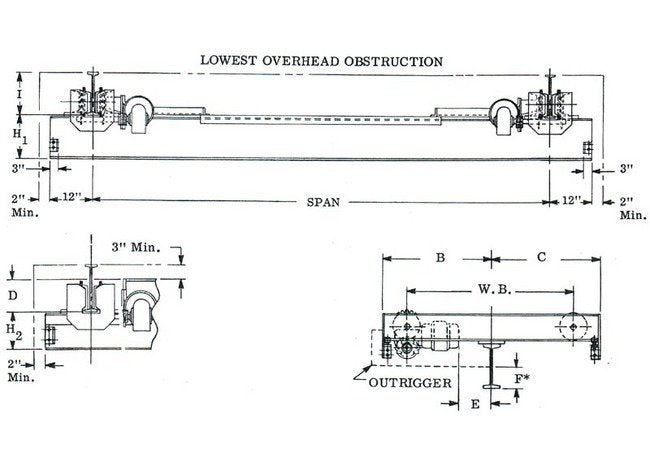

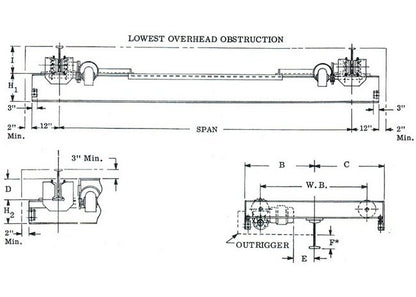

Specifications Dimension B
3'-2"
Specifications Dimension C
3'-0"
Specifications Dimension D
9 inches
Specifications Dimension E
12 inches
Specifications Dimension H1
19 inches
Specifications Dimension H2
9 inches
Specifications Electric
&nbps;
Specifications Girder Size
S18 x 54.7
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Max Runway Rail
S12 x 31.8
Specifications Min Runway Rail
S8 x 18.4
Specifications Model
Model USD Motorized Cranes
Specifications Span
32'-6"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Base
5'-0"
Specifications Wheel Diameter
5 inches
Specifications Wheel Load Per Pair
3085 lbs.
