Dual Motor Underhung Single Girder Crane
Dual Motor Underhung Single Girder Crane
SKU:REL-c9b6f5
Robust Dual Motor Underhung Single Girder Crane for heavy-duty lifting with 3-ton capacity. Compliant with federal standards.
Regular price
$12,999.99
Regular price
Sale price
$12,999.99
Unit price
per
Initiate Order
Dual Motor Underhung Single Girder Crane
$12,999.99
Quantity: 1
Claim Your Seller Account
Dual Motor Underhung Single Girder Crane
$12,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dual Motor Underhung Single Girder Crane is a robust lifting solution designed for heavy-duty applications with a capacity of 3 tons. Featuring a W24 x 94.0 girder size for enhanced stability, this crane is equipped with Model USD Motorized Cranes for efficient operation. With a span of 60 feet and a Wheel Base of 8 feet 6 inches, this crane excels in extreme conditions and is suitable for both indoor and outdoor use. The crane is compliant with federal procurement standards, GSA requirements, and meets industry-specific certifications for quality assurance.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
3 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
10343 lbs.

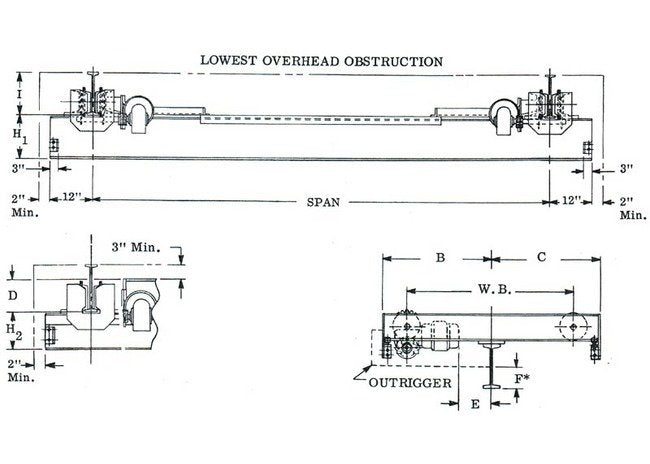

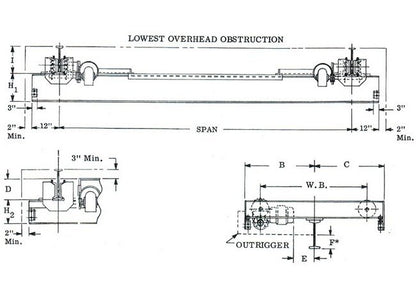

Specifications Dimension B
4'-11"
Specifications Dimension C
4'-9"
Specifications Dimension D
12 inches
Specifications Dimension E
27 inches
Specifications Dimension F
10 inches
Specifications Dimension H1
25 inches
Specifications Dimension H2
12 inches
Specifications Electric
&nbps;
Specifications Girder Size
W24 x 94.0
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Max Runway Rail
S15 x 42.9
Specifications Min Runway Rail
S10 x 25.4
Specifications Model
Model USD Motorized Cranes
Specifications Outrigger
Structural
Specifications Span
60'-0"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Base
8'-6"
Specifications Wheel Diameter
6 1/2 inches
Specifications Wheel Load Per Pair
6015 lbs.
