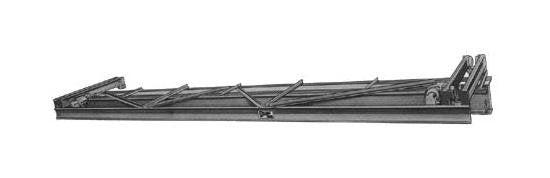

Dual Motor Underhung Single Girder Cranes
Dual Motor Underhung Single Girder Cranes
SKU:REL-971eb4
Enhance productivity with our robust Dual Motor Underhung Single Girder Cranes, designed for stability in extreme conditions.
Regular price
$8,999.00
Regular price
Sale price
$8,999.00
Unit price
per
Initiate Order
Dual Motor Underhung Single Girder Cranes
$8,999.00
Quantity: 1
Claim Your Seller Account
Dual Motor Underhung Single Girder Cranes
$8,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unmatched efficiency with our Dual Motor Underhung Single Girder Cranes. Featuring Model USD for 3-ton capacity, S24 x 80.0 girder size, and structural outriggers, these cranes are designed for extreme conditions while ensuring top-tier stability. With dimensions meeting industrial standards and structural reliability, these cranes are suitable for indoor and outdoor use. The hand geared or motor-driven options offer versatile operation for various lifting needs.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
3 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
7992 lbs.

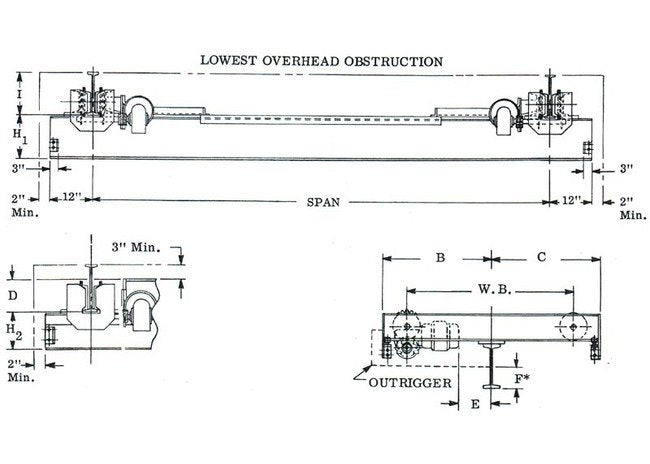

Specifications Dimension B
4'-5"
Specifications Dimension C
4'-3"
Specifications Dimension D
12 inches
Specifications Dimension E
27 inches
Specifications Dimension F
10 inches
Specifications Dimension H1
25 inches
Specifications Dimension H2
12 inches
Specifications Electric
&nbps;
Specifications Girder Size
S24 x 80.0
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Max Runway Rail
S15 x 42.9
Specifications Min Runway Rail
S10 x 25.4
Specifications Model
Model USD Motorized Cranes
Specifications Outrigger
Structural
Specifications Span
50'-0"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Base
7'-6"
Specifications Wheel Diameter
6 1/2 inches
Specifications Wheel Load Per Pair
5425 lbs.
