Dual Motor Underhung Single Girder Cranes - 5 Ton Capacity
Dual Motor Underhung Single Girder Cranes - 5 Ton Capacity
SKU:REL-736ba3
Powerful 5-ton capacity dual motor crane for extreme conditions, indoor/outdoor use. Top-notch safety features.
Regular price
$14,999.99
Regular price
Sale price
$14,999.99
Unit price
per
Initiate Order
Dual Motor Underhung Single Girder Cranes - 5 Ton Capacity
$14,999.99
Quantity: 1
Claim Your Seller Account
Dual Motor Underhung Single Girder Cranes - 5 Ton Capacity
$14,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

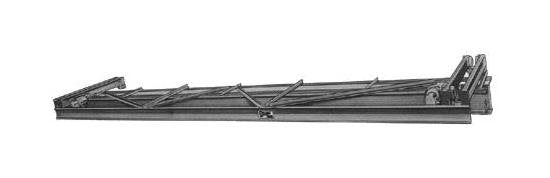

Experience exceptional lifting performance with our Dual Motor Underhung Single Girder Cranes. Designed for extreme conditions, this crane features a sturdy W27 x 102 girder size, 55'-0" span, and a reliable capacity of 5 tons. With top-notch safety features such as Structural Outriggers and Hand Geared/Motor Driven options, this crane ensures efficient and precise operations. Compliant with industry standards and suitable for indoor and outdoor use.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
5 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
10823 lbs.

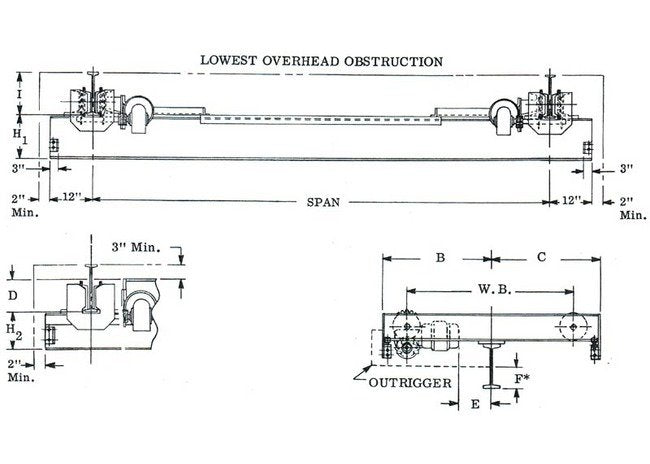

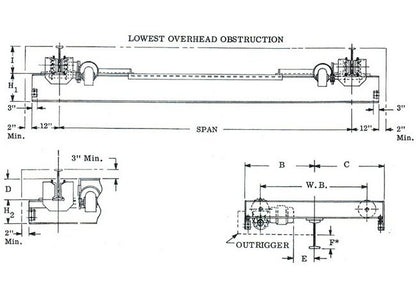

Specifications Dimension B
5'-1"
Specifications Dimension C
5'-0"
Specifications Dimension D
14 inches
Specifications Dimension E
33 inches
Specifications Dimension F
11 inches
Specifications Dimension H1
28 inches
Specifications Dimension H2
13 inches
Specifications Electric
&nbps;
Specifications Girder Size
W27 x 102
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Max Runway Rail
S18 x 54.7
Specifications Min Runway Rail
S12 x 31.8
Specifications Model
Model USD Motorized Cranes
Specifications Outrigger
Structural
Specifications Span
55'-0"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Base
8'-6"
Specifications Wheel Diameter
8 1/2 inches
Specifications Wheel Load Per Pair
8310 lbs.
