Dual PID Temperature Controller, 100-240V AC Voltage
Dual PID Temperature Controller, 100-240V AC Voltage
SKU:PRO-a81203
Get precise temperature control with the Autonics USA Dual PID Temperature Controller. Ideal for industrial use.
Regular price
$137.95
Regular price
Sale price
$137.95
Unit price
per
Initiate Order
Dual PID Temperature Controller, 100-240V AC Voltage
$137.95
Quantity: 1
Claim Your Seller Account
Dual PID Temperature Controller, 100-240V AC Voltage
$137.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

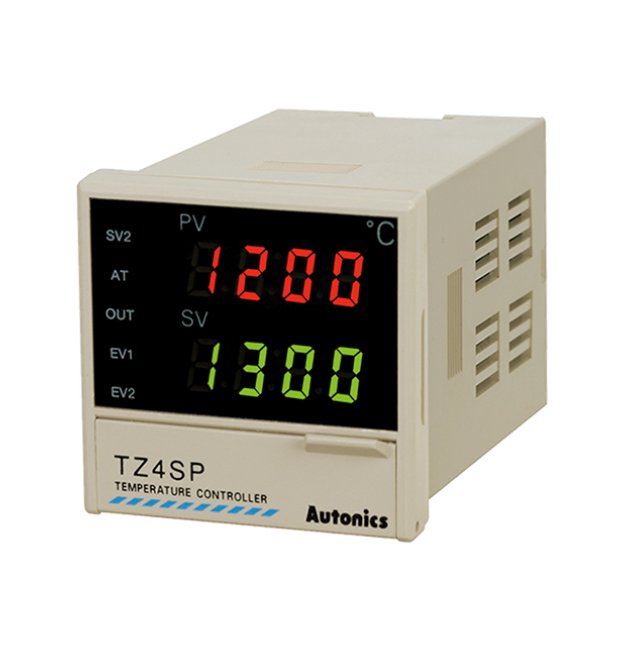

The Dual PID Temperature Controller by Autonics USA offers precise temperature control with versatile functionality. Operating on 100 to 240V AC voltage, this controller supports various control methods including On/Off, P, PD, PI, PIDF, and PIDS. With approvals from CURUS, CE, and a display accuracy of F.S ± 0.3%, this controller is ideal for institutional and industrial applications. It features alarm outputs, analog inputs, and supports multiple thermocouple and RTD inputs for comprehensive temperature monitoring and regulation.
Product Specifications
Specifications Alarm Output
Alarm1
Specifications Alarm Output Hysteresis
1 to 100ºC (0.1 to 100.0ºC) Variable
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Analog Input Specification
0 to 10VDC | 1 to 5 VDC | DC 4 to 20mA
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PIDF | PIDS Control
Specifications Control Output
Relay Contact Output
Specifications Control Period
1 to 120 s
Specifications Derivative Time
0 to 3600 s
Specifications Dimensions
48 x 48 mm (11pin plug type)
Specifications Display Accuracy
F.S ± 0.3% or 3ºC, Select the Higher One
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Integral Time Range
0 to 3600 s
Specifications Lba Setting
1 to 999
Specifications List Price
137.95 USD
Specifications Option Output
Event 1
Specifications Proportional Band
0.0 to 100.0
Specifications Ramp Setting
Ramp Up, Ramp Down: 1 to 99 Minutes Each
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Sampling Cycle
500 ms
Specifications Shipping Weight
144 g
Specifications Thermocouple Input Specification
E(CR) | J(IC) | K(CA) | N(NN) | R(PR) | S(PR) | T(CC) | W(TT)
Specifications Type
Dual PID
Specifications Unit Weight
205 g
Specifications Weight
0.49 lb
