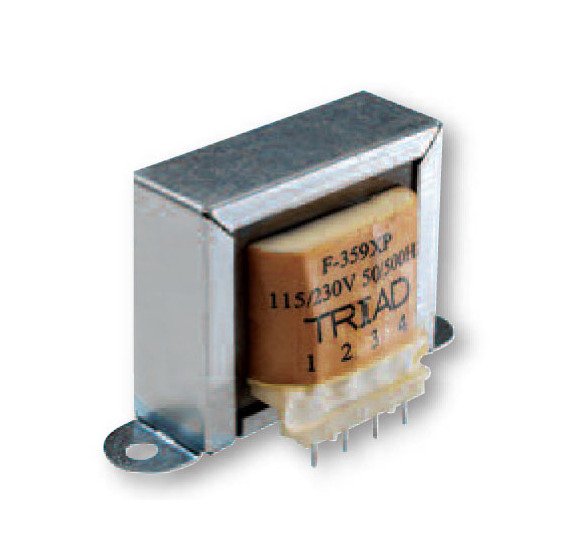

Dual Primary and Secondary PC Mount Power Transformers
Dual Primary and Secondary PC Mount Power Transformers
SKU:POW-aadeb6
Versatile Dual Primary and Secondary Transformers for power and control applications. Hi-pot tested for reliability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Dual Primary and Secondary PC Mount Power Transformers
$29.99
Quantity: 1
Claim Your Seller Account
Dual Primary and Secondary PC Mount Power Transformers
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet the diverse needs of power supply designs with our Dual Primary and Dual Secondary PC Mount Power Transformers. Ideal for both power and control applications, these transformers feature a dual primary and dual center tapped secondary configurations. With an electrical rating of 4 1/2 V·A, they offer secondary voltages in series and parallel, ensuring versatile usability. Hi-pot tested at 1,500 VRMS, these transformers are designed for both domestic and foreign markets, making them a reliable choice for various applications.
Product Specifications

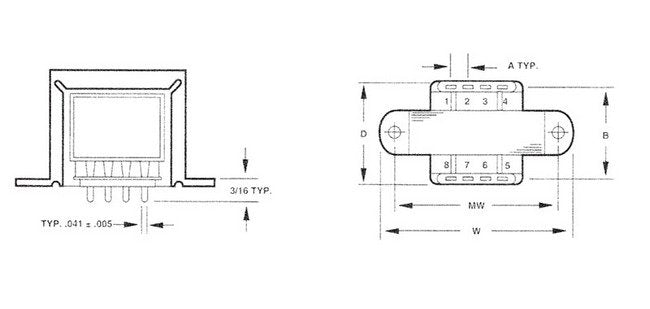

Specifications Depth D
1 1/4 in
Specifications Dimension A
1/4 in
Specifications Dimension B
1 7/64 in
Specifications Electrical Rating
4 1/2 V·A
Specifications Height H
1 7/16 in
Specifications Length L
1 5/8 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
10.0 V at 0.450 A
Specifications Secondary Voltage In Series
20.0 V CT at 0.225 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
6.5 oz
Specifications Width W
2 3/8 in
Technical Notes Technical Notes
The transformers with dual primaries permit their use in equipment for sale in both foreign and domestic markets.Hi-pot tested at 1,500 VRMS.
