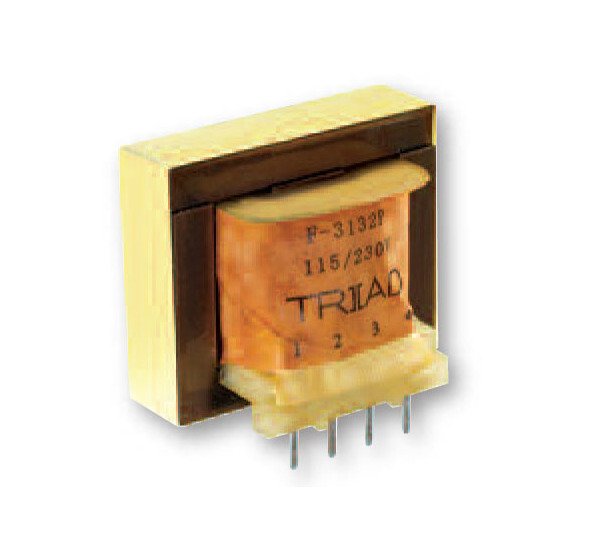

Dual Primary and Secondary PC Mount Power Transformers
Dual Primary and Secondary PC Mount Power Transformers
SKU:POW-3076e5
Enhance power supply designs with efficient Dual Primary, Dual Secondary Transformers. Meet diverse application needs with ease.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Dual Primary and Secondary PC Mount Power Transformers
$49.99
Quantity: 1
Claim Your Seller Account
Dual Primary and Secondary PC Mount Power Transformers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your power supply designs with our Dual Primary, Dual Secondary PC Mount Power Transformers. These transformers cater to power, control, and instrumentation applications with high efficiency. Featuring single or dual primary options and dual center tapped secondary configurations, they are versatile for various setups. With an electrical rating of 24 VA and hi-pot tested at 1,500 VRMS, these transformers ensure reliable performance and safety. They offer primary voltage compatibility for both domestic and foreign markets at 115V or 230V, meeting stringent industry standards.
Product Specifications

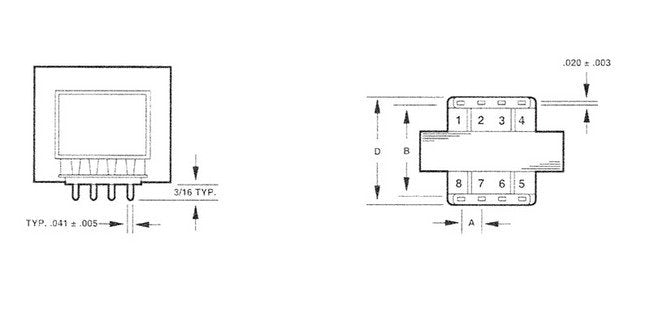

Specifications Depth D
2 1/4 in
Specifications Dimension A
1/4 in
Specifications Dimension B
2 7/64 in
Specifications Electrical Rating
24 V·A
Specifications Height H
1 3/8 in
Specifications Length L
1 5/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
17.0 V at 1.4 A
Specifications Secondary Voltage In Series
34.0 V CT at 0.7 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
13.3 oz
Technical Notes Technical Notes
The transformers with dual primaries permit their use in equipment for sale in both foreign and domestic markets.Hi-pot tested at 1,500 VRMS.
