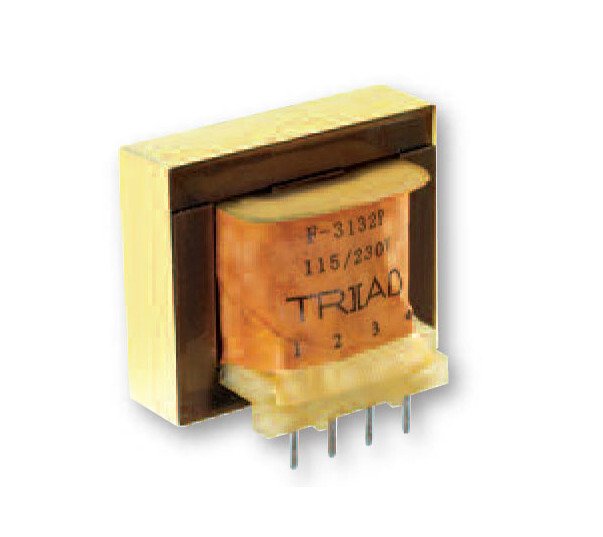

Dual Primary and Secondary PC Mount Power Transformers
Dual Primary and Secondary PC Mount Power Transformers
SKU:POW-e85460
Enhance power supply designs with Dual Primary, Dual Secondary Transformers for superior performance & flexibility.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Dual Primary and Secondary PC Mount Power Transformers
$49.99
Quantity: 1
Claim Your Seller Account
Dual Primary and Secondary PC Mount Power Transformers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your power supply designs with our versatile Dual Primary, Dual Secondary PC Mount Power Transformers. Perfect for meeting power, control, and instrumentation requirements, these transformers feature a dual primary, dual center-tapped secondary configurations, delivering reliability and performance. With a wide selection of plug-in types and the ability to be used in both domestic and foreign markets, these transformers are also Hi-pot tested at 1,500 VRMS for safety and quality assurance.
Product Specifications

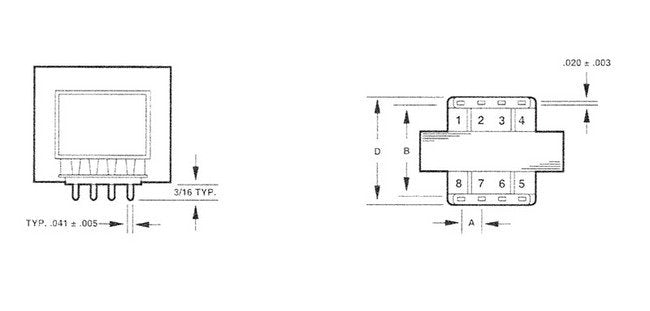

Specifications Depth D
2 1/4 in
Specifications Dimension A
1/4 in
Specifications Dimension B
2 7/64 in
Specifications Electrical Rating
24 V·A
Specifications Height H
1 3/8 in
Specifications Length L
1 5/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
8.0 V at 3.0 A
Specifications Secondary Voltage In Series
16.0 V CT at 1.5 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
13.3 oz
Technical Notes Technical Notes
The transformers with dual primaries permit their use in equipment for sale in both foreign and domestic markets.Hi-pot tested at 1,500 VRMS.
