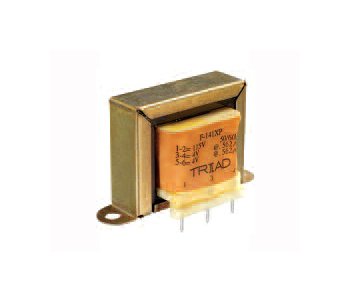

Dual Primary Dual Secondaries PC Mount Power Transformer
Dual Primary Dual Secondaries PC Mount Power Transformer
SKU:POW-7c8685
Versatile Dual Primary Dual Secondaries transformer for PC board and solid-state power supply designs. Reliable performance with hi-pot testing at 1,500 VRMS.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Dual Primary Dual Secondaries PC Mount Power Transformer
$34.99
Quantity: 1
Claim Your Seller Account
Dual Primary Dual Secondaries PC Mount Power Transformer
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dual Primary Dual Secondaries PC Mount Power Transformer from our PC Mount Power Transformers line is designed to meet the diverse needs of PC board and solid-state power supply designs. With the capability to handle power, control, and instrumentation applications, this transformer offers a flexible solution for various projects. Featuring dual primary and dual center-tapped secondary configurations, this transformer provides reliable performance and consistent power distribution. Hi-pot tested at 1,500 VRMS for enhanced safety and durability.
Product Specifications

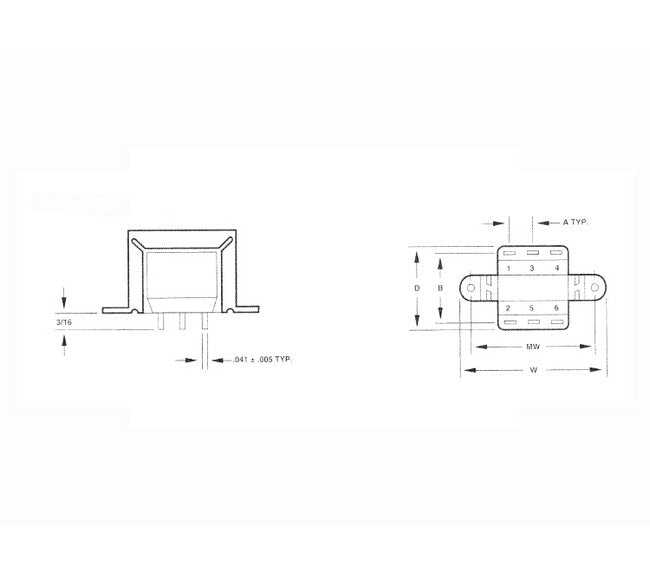

Specifications Depth D
1 15/32 in
Specifications Dimension A
13/32 in
Specifications Dimension B
1 5/16 in
Specifications Electrical Rating
7 1/2 V·A
Specifications Height H
1 5/8 in
Specifications Length L
1 61/64 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Frequency
50 Hz | 60 Hz

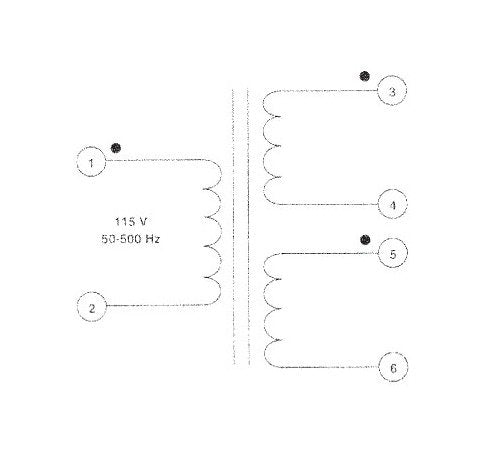

Specifications Primary Voltage
115 V
Specifications Secondary Voltage In Parallel
7.5 V at 1.000 A
Specifications Secondary Voltage In Series
15.0 V CT at 0.500 A
Specifications Technical Notes
Hi-pot tested at 1,500 VRMS.
Specifications Transformer Contact Type
Center Tap
Specifications Weight
10.5 oz
Specifications Width W
2 13/16 in
