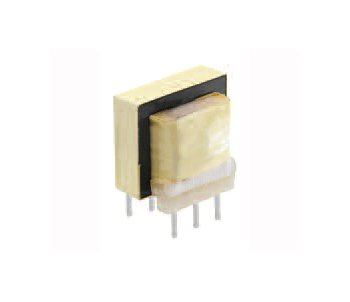

Dual Primary Dual Secondary PC Mount Power Transformer
Dual Primary Dual Secondary PC Mount Power Transformer
SKU:POW-112490
Optimize power solutions with our Dual Primary Dual Secondary PC Mount Power Transformer. Versatile design for diverse applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Dual Primary Dual Secondary PC Mount Power Transformer
$39.99
Quantity: 1
Claim Your Seller Account
Dual Primary Dual Secondary PC Mount Power Transformer
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet a broad array of power needs with our Dual Primary Dual Secondary PC Mount Power Transformer. Ideal for PC board and solid state power supply designs, this transformer offers options for power, control, and instrumentation applications. Featuring a Hi-pot test at 1,500 VRMS, it ensures reliability and safety. Choose between single or dual primary, and opt for dual center-tapped secondaries for versatile compatibility.
Product Specifications

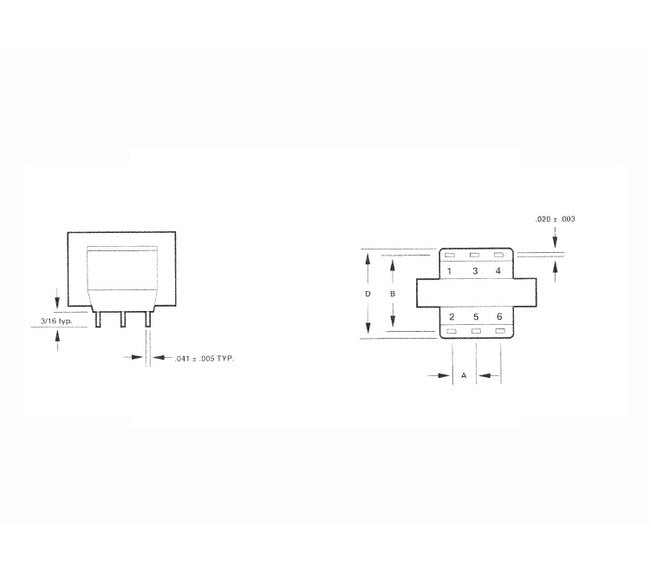

Specifications Depth D
1 5/32 in
Specifications Dimension A
5/16 in
Specifications Dimension B
1 in
Specifications Electrical Rating
1 1/2 V·A
Specifications Height H
1 3/16 in
Specifications Length L
1 25/64 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Voltage In Parallel
12.6 V at 0.12 A
Specifications Secondary Voltage In Series
25.2 V CT at 0.06 A
Specifications Technical Notes
Hi-pot tested at 1,500 VRMS.
Specifications Transformer Contact Type
Center Tap
Specifications Weight
3.5 oz
