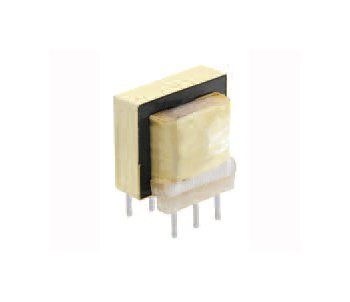

Upgrade your power supply designs with the Triad Dual Primary Dual Secondary PC Mount Power Transformer. Ideal for both power and control applications, offering a center tap contact type with high reliability and efficiency. Meets stringent standards for hi-pot testing at 1,500 VRMS, ensuring optimal performance and safety.
Product Specifications

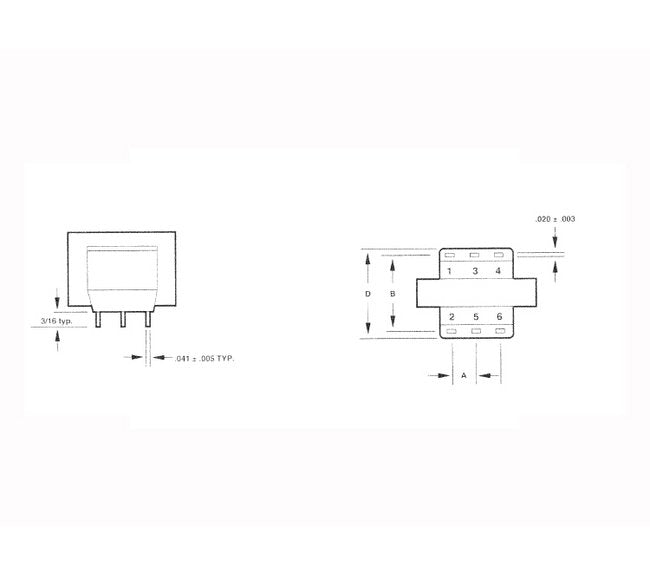

Specifications Depth D
1 5/32 in
Specifications Dimension A
5/16 in
Specifications Dimension B
1 in
Specifications Electrical Rating
1 1/2 V·A
Specifications Height H
1 3/16 in
Specifications Length L
1 25/64 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Voltage In Parallel
6.3 V at 0.24 A
Specifications Secondary Voltage In Series
12.6 V CT at 0.12 A
Specifications Technical Notes
Hi-pot tested at 1,500 VRMS.
Specifications Transformer Contact Type
Center Tap
Specifications Weight
3.5 oz
