Versatile Dual Primary, Dual Secondary Power Transformers for PC board and solid-state designs. Hi-pot tested for safety.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Dual Primary Dual Secondary PC Mount Power Transformers
$29.99
Quantity: 1
Claim Your Seller Account
Dual Primary Dual Secondary PC Mount Power Transformers
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

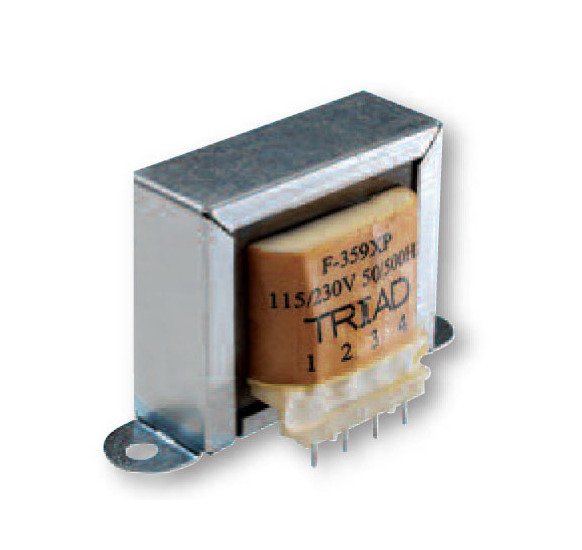

Meet the diverse needs of PC board and solid-state power supply designs with our Dual Primary, Dual Secondary PC Mount Power Transformers. These transformers feature dual primaries for use in both foreign and domestic markets, ensuring compatibility with a wide range of applications. With a compact design and precise engineering, these transformers deliver reliable performance for power, control, and instrumentation requirements. Hi-pot tested at 1,500 VRMS to guarantee safety and quality.
Product Specifications

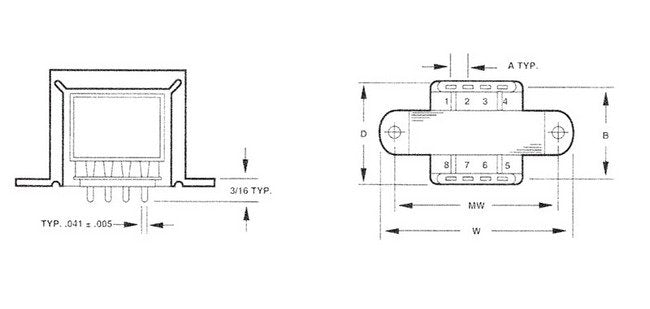

Specifications Depth D
1 1/4 in
Specifications Dimension A
1/4 in
Specifications Dimension B
1 7/64 in
Specifications Electrical Rating
4 1/2 V·A
Specifications Height H
1 7/16 in
Specifications Length L
1 5/8 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
8.0 V at 0.560 A
Specifications Secondary Voltage In Series
16.0 V CT at 0.280 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
6.5 oz
Specifications Width W
2 3/8 in
Technical Notes Technical Notes
The transformers with dual primaries permit their use in equipment for sale in both foreign and domestic markets.Hi-pot tested at 1,500 VRMS.
