Dual Primary Dual Secondary PC Mount Power Transformers - 24 VA
Dual Primary Dual Secondary PC Mount Power Transformers - 24 VA
SKU:POW-2177c8
Enhance your power supply designs with Dual Primary Dual Secondary PC Mount Power Transformers - 24 VA, perfect for various applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Dual Primary Dual Secondary PC Mount Power Transformers - 24 VA
$39.99
Quantity: 1
Claim Your Seller Account
Dual Primary Dual Secondary PC Mount Power Transformers - 24 VA
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

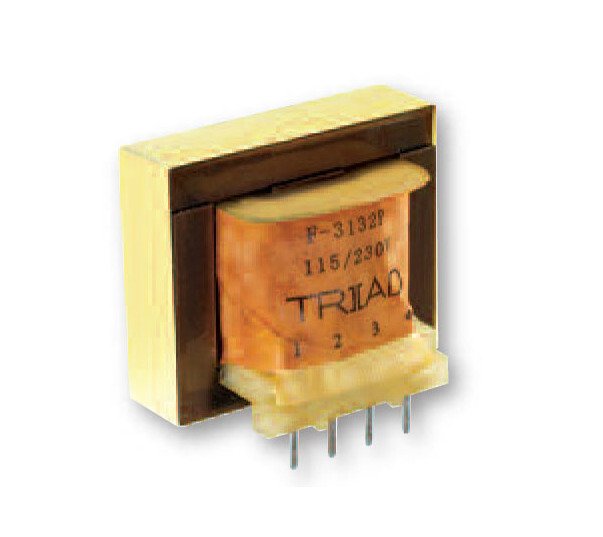

The Dual Primary, Dual Secondary PC Mount Power Transformers from Triad offer versatile solutions for PC board and solid-state power supply designs. These transformers feature dual primaries for use in both domestic and foreign markets, meeting various power, control, and instrumentation application needs. With a primary voltage option of 115V or 230V, and secondary configurations providing 20.0V CT at 1.2A or 10.0V at 2.4A, these transformers are reliable, compact, and hi-pot tested at 1,500 VRMS for ensured performance.
Product Specifications
Specifications Depth D
2 1/4 in
Specifications Dimension A
1/4 in
Specifications Dimension B
2 7/64 in
Specifications Electrical Rating
24 V·A
Specifications Height H
1 3/8 in
Specifications Length L
1 5/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
10.0 V at 2.4 A
Specifications Secondary Voltage In Series
20.0 V CT at 1.2 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
13.3 oz
Technical Notes Technical Notes
The transformers with dual primaries permit their use in equipment for sale in both foreign and domestic markets.Hi-pot tested at 1,500 VRMS.
