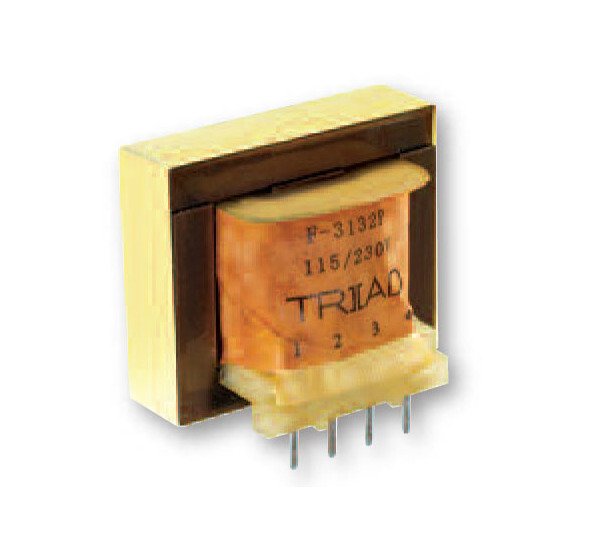

Dual Primary, Dual Secondary PC Mount Power Transformers - Plug-In Style

Name: Dual Primary, Dual Secondary PC Mount Power Transformers - Plug-In Style
Brand: Triad Magnetics
SKU: POW-b5fc7c
Price: 39.99 USD
Availability: OutOfStock

SKU:POW-b5fc7c

Versatile Dual Primary, Dual Secondary Power Transformers for PC and power supply designs. Ideal for control and instrumentation applications.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

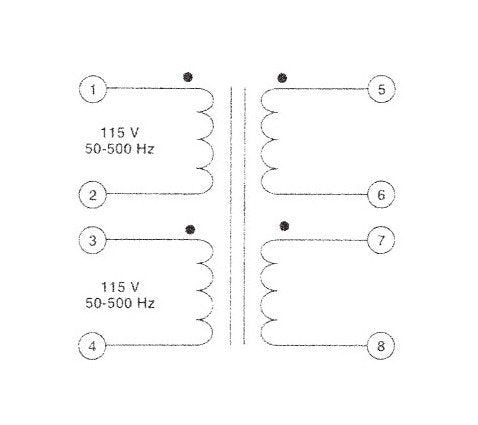

The Dual Primary, Dual Secondary PC Mount Power Transformers from Triad offer exceptional flexibility for PC board and solid-state power supply designs. With options for single or dual primary and dual center-tapped secondary configurations, these transformers are suitable for a wide range of power, control, and instrumentation applications. With an electrical rating of 24 VA, primary voltages of 115V and 230V, and secondary voltages of 56.0V CT at 0.42 A and 28.0V at 0.84 A, these transformers provide reliable power solutions for various setups. Additionally, they are hi-pot tested at 1,500 VRMS for superior performance and safety.

Product Specifications

Specifications Depth D

2 1/4 in

Specifications Dimension A

1/4 in

Specifications Dimension B

2 7/64 in

Specifications Electrical Rating

24 VÂ·A

Specifications Height H

1 3/8 in

Specifications Length L

1 5/8 in

Specifications Primary Frequency

50 Hz | 60 Hz

Specifications Primary Voltage

115 V | 230 V

Specifications Secondary Voltage In Parallel

28.0 V at 0.84 A

Specifications Secondary Voltage In Series

56.0 V CT at 0.42 A

Specifications Transformer Contact Type

Center Tap

Specifications Weight

13.3 oz

Technical Notes Technical Notes

The transformers with dual primaries permit their use in equipment for sale in both foreign and domestic markets.Hi-pot tested at 1,500 VRMS.
