The Triad Dual Primary, Dual Secondary PC Mount Power Transformers are expertly designed to meet the demanding requirements of PC board and solid state power supply designs. With both single and dual primary options and dual center-tapped secondary configurations, these transformers cater to power, control, and instrumentation applications. Featuring an electrical rating of 4 1/2 V·A, Hi-pot tested at 1,500 VRMS, and conforming to international standards, these transformers ensure reliable performance and versatility in both domestic and foreign markets.

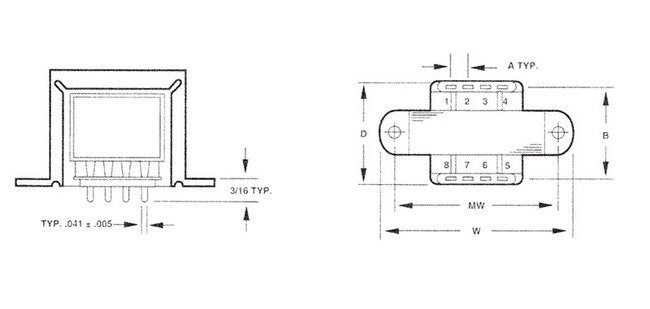

Product Specifications

Specifications Depth D
1 1/4 in
Specifications Dimension A
1/4 in
Specifications Dimension B
1 7/64 in
Specifications Electrical Rating
4 1/2 V·A
Specifications Height H
1 7/16 in
Specifications Length L
1 5/8 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
115.0 V at 0.040 A
Specifications Secondary Voltage In Series
230.0 V CT at 0.020 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
6.5 oz
Specifications Width W
2 3/8 in
Technical Notes Technical Notes
The transformers with dual primaries permit their use in equipment for sale in both foreign and domestic markets.Hi-pot tested at 1,500 VRMS.
