Dual Primary, Dual Secondary PC Mount Power Transformers - Triad Power Transformers

Dual Primary, Dual Secondary PC Mount Power Transformers - Triad Power Transformers

POW-f21bb2

Meet diverse power needs with Dual Primary, Dual Secondary PC Mount Power Transformers - ideal for PC board & solid state power supply designs.

$49.99
$49.99
Sale

Initiate Order

Dual Primary, Dual Secondary PC Mount Power Transformers - Triad Power Transformers

Dual Primary, Dual Secondary PC Mount Power Transformers - Triad Power Transformers

$49.99

Quantity: 1

Claim Your Seller Account

Dual Primary, Dual Secondary PC Mount Power Transformers - Triad Power Transformers

Dual Primary, Dual Secondary PC Mount Power Transformers - Triad Power Transformers

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

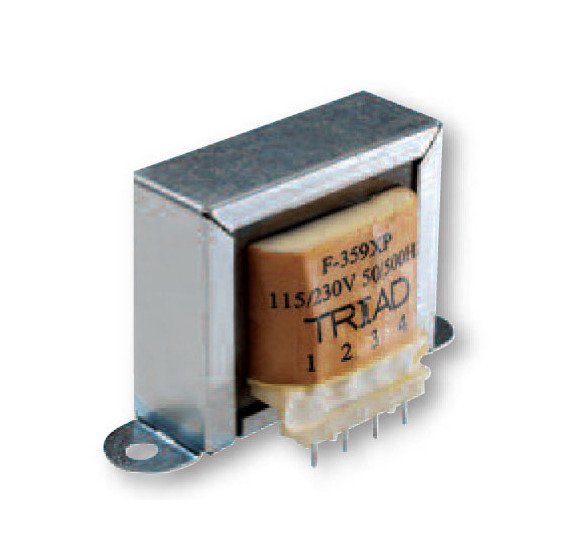

The Dual Primary, Dual Secondary PC Mount Power Transformers from Triad are meticulously crafted to cater to the demanding requirements of PC board and solid state power supply designs. These versatile transformers feature single or dual primary options along with dual center tapped secondary configurations, offering exceptional power, control, and instrumentation capabilities. With an electrical rating of 10 VA, secondary voltage options of 24.0 V CT at 0.450 A or 12.0 V at 0.900 A, and dual primary voltages of 115 V or 230 V, these transformers provide reliability and efficiency in diverse applications. Additionally, they are designed in compliance with industry standards for seamless integration into both domestic and international markets, making them a top choice for critical power needs.

Product Specifications

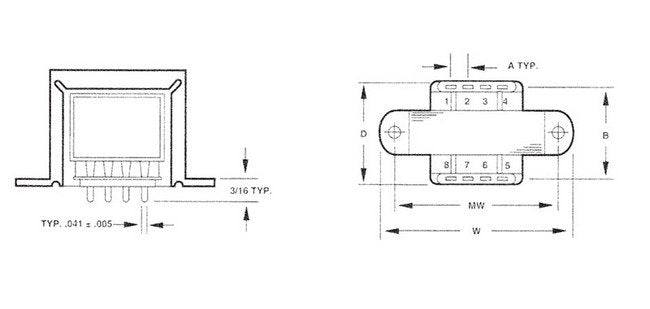

Specifications Depth D
1 7/16 in
Specifications Dimension A
1/4 in
Specifications Dimension B
1 5/16 in
Specifications Electrical Rating
10 V·A
Specifications Height H
1 5/8 in
Specifications Length L
1 7/8 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
12.0 V at 0.900 A
Specifications Secondary Voltage In Series
24.0 V CT at 0.450 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
11.0 oz
Specifications Width W
2 13/16 in
Technical Notes Technical Notes
The transformers with dual primaries permit their use in equipment for sale in both foreign and domestic markets.Hi-pot tested at 1,500 VRMS.
