Dual Primary PC Mount Split Pack™ Power Transformers

Dual Primary PC Mount Split Pack™ Power Transformers

POW-31ac2b

Versatile Dual Primary split bobbin transformers for PC board applications, ensuring reliable performance with nonconcentric windings and low capacitive coupling.

$59.99
$59.99
Sale

Initiate Order

Dual Primary PC Mount Split Pack™ Power Transformers

Dual Primary PC Mount Split Pack™ Power Transformers

$59.99

Quantity: 1

Claim Your Seller Account

Dual Primary PC Mount Split Pack™ Power Transformers

Dual Primary PC Mount Split Pack™ Power Transformers

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Dual Primary PC Mount Split Pack™ Power Transformers by Triad are essential components for PC board applications, featuring a split bobbin design that eliminates costly electrostatic shielding. With nonconcentric windings and low capacitive coupling, these transformers offer dual secondary configurations with single or dual primaries. Hi-pot tested at 2,500 VRMS, they ensure reliable performance and accurate placement with PC terminal pin spacing. The transformers are versatile, meeting the high standards of government and institutional procurement.

Product Specifications

Specifications Dimension A
0.30 in
Specifications Dimension B
0.40 in
Specifications Dimension C
1.410 in
Specifications Electrical Rating
12.0 V·A
Specifications Height H
1 7/16 in
Specifications Length L
1 7/8 in
Specifications Mounting Width
1 1/4 in
Specifications Number Of Pins
6
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
24.0 V at 0.5 A
Specifications Secondary Voltage In Series
48.0 V CT at 0.25 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
0.70 lb
Specifications Width W
1 9/16 in
Technical Notes 0

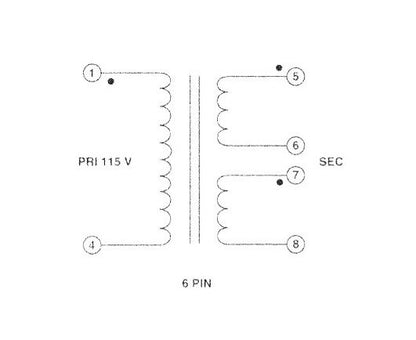

Hi-pot tested at 2,500 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
