Dual Primary & Secondary PC Mount Power Transformers
Dual Primary & Secondary PC Mount Power Transformers
SKU:POW-381b98
Enhance PC power supplies with Dual Primary, Dual Secondary Transformers. Versatile and quality-tested for consumer and institutional use.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Dual Primary & Secondary PC Mount Power Transformers
$39.99
Quantity: 1
Claim Your Seller Account
Dual Primary & Secondary PC Mount Power Transformers
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your power supply designs with our versatile Dual Primary, Dual Secondary PC Mount Power Transformers. Ideal for both consumer and institutional applications, these transformers offer reliable performance and flexibility. With options for single or dual primary and dual center-tapped secondary configurations, they meet diverse needs. Hi-pot tested at 1,500 VRMS, ensuring safety and quality.
Product Specifications

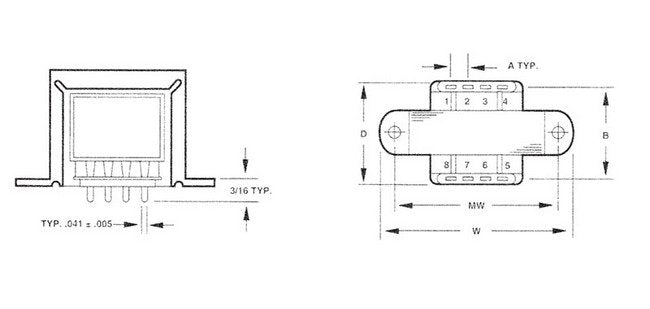

Specifications Depth D
1 1/4 in
Specifications Dimension A
1/4 in
Specifications Dimension B
1 7/64 in
Specifications Electrical Rating
4 1/2 V·A
Specifications Height H
1 7/16 in
Specifications Length L
1 5/8 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
15.0 V at 0.3 A
Specifications Secondary Voltage In Series
30.0 V CT at 0.15 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
6.5 oz
Specifications Width W
2 3/8 in
Technical Notes Technical Notes
The transformers with dual primaries permit their use in equipment for sale in both foreign and domestic markets.Hi-pot tested at 1,500 VRMS.
