Triad Magnetics →

Dual Primary & Secondary PC Mount Power Transformers

Dual Primary & Secondary PC Mount Power Transformers

POW-93f118

Versatile, compact Dual Primary & Secondary PC Mount Power Transformers for power, control, and instrumentation applications.

$29.99
$29.99
Sale

Initiate Order

Dual Primary & Secondary PC Mount Power Transformers

Dual Primary & Secondary PC Mount Power Transformers

$29.99

Quantity: 1

Claim Your Seller Account

Dual Primary & Secondary PC Mount Power Transformers

Dual Primary & Secondary PC Mount Power Transformers

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

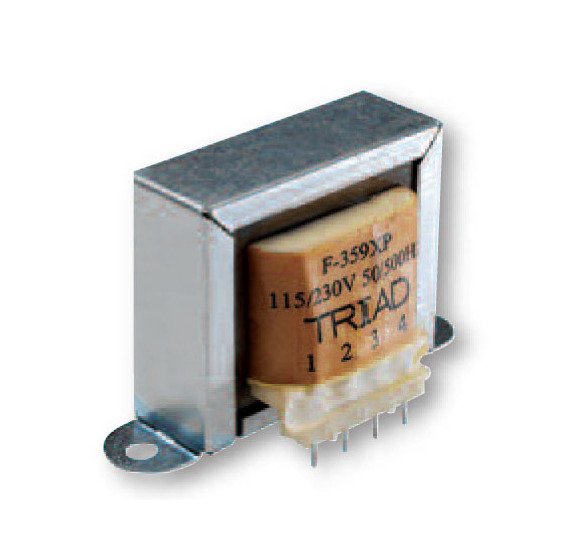

The Dual Primary & Secondary PC Mount Power Transformers from Triad offer versatile plug-in options perfect for PC board and solid-state power supply designs. With the flexibility of single or dual primaries and dual center-tapped secondaries, these transformers are designed to meet power, control, and instrumentation needs. Featuring an electrical rating of 4 1/2 V·A and center tap secondary voltage options, these transformers are compactly designed to fit various applications with dimensions of 1 3/8" (H) x 2 3/8" (W) x 1 1/4" (D). They are hi-pot tested at 1,500 VRMS, making them suitable for equipment sold in both domestic and foreign markets.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

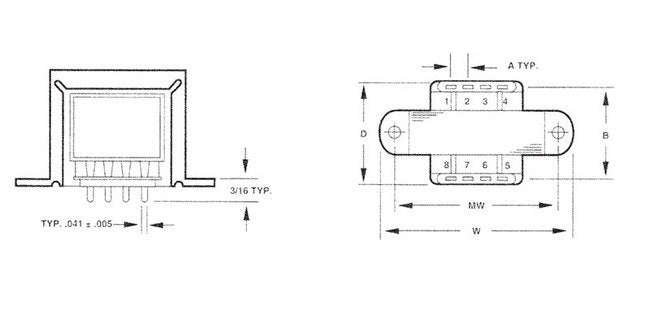

Specifications Depth D
1 1/4 in
Specifications Dimension A
1/4 in
Specifications Dimension B
1 7/64 in
Specifications Electrical Rating
4 1/2 V·A
Specifications Height H
1 3/8 in
Specifications Length L
1 5/8 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
6.3 V at 0.700 A
Specifications Secondary Voltage In Series
12.6 V CT at 0.350 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
6.5 oz
Specifications Width W
2 3/8 in
Technical Notes Technical Notes
The transformers with dual primaries permit their use in equipment for sale in both foreign and domestic markets.Hi-pot tested at 1,500 VRMS.
