Dual Primary & Secondary PC Mount Power Transformers
Dual Primary & Secondary PC Mount Power Transformers
SKU:POW-f5a240
Versatile Dual Primary & Secondary Transformers for PC Boards & Power Supplies. Hi-pot tested at 1,500 VRMS.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Dual Primary & Secondary PC Mount Power Transformers
$39.99
Quantity: 1
Claim Your Seller Account
Dual Primary & Secondary PC Mount Power Transformers
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dual Primary & Secondary PC Mount Power Transformers offer exceptional versatility for PC board and solid-state power supply designs, meeting power, control, and instrumentation needs. Featuring dual primary and dual center-tapped secondary configurations, these transformers provide electrical ratings of 7 1/2 V·A, with secondary voltages up to 15.0 V CT at 0.5 A. With a compact design and Hi-pot tested at 1,500 VRMS, these transformers are ideal for both domestic and foreign markets.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

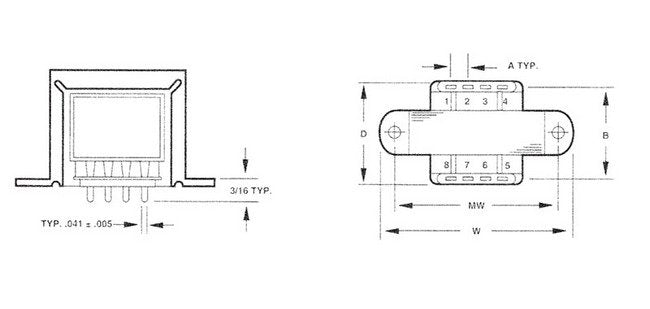

Specifications Depth D
1 7/16 in
Specifications Dimension A
1/4 in
Specifications Dimension B
1 5/16 in
Specifications Electrical Rating
7 1/2 V·A
Specifications Height H
1 5/8 in
Specifications Length L
1 7/8 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
7.5 V at 1.0 A
Specifications Secondary Voltage In Series
15.0 V CT at 0.5 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
11.0 oz
Specifications Width W
2 13/16 in
Technical Notes Technical Notes
The transformers with dual primaries permit their use in equipment for sale in both foreign and domestic markets.Hi-pot tested at 1,500 VRMS.
