Triad Magnetics →

Dual Primary Secondary PC Mount Power Transformers

Dual Primary Secondary PC Mount Power Transformers

POW-e181cf

High-performance transformers for power, control, and instrumentation applications. Dual primary, dual center-tapped secondary configurations.

$39.99
$39.99
Sale

Initiate Order

Dual Primary Secondary PC Mount Power Transformers

Dual Primary Secondary PC Mount Power Transformers

$39.99

Quantity: 1

Claim Your Seller Account

Dual Primary Secondary PC Mount Power Transformers

Dual Primary Secondary PC Mount Power Transformers

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

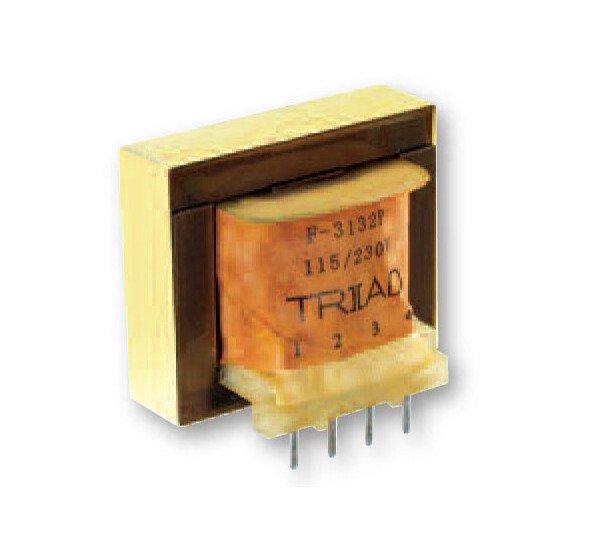

The Dual Primary Secondary PC Mount Power Transformers from our collection cater to a diverse array of power supply designs with single or dual primary and dual center-tapped secondary configurations. These transformers are engineered to meet the stringent power, control, and instrumentation requirements of both consumer devices and institutional equipment. With an electrical rating of 24 VA and primary voltage options of 115V and 230V, these transformers offer versatile functionalities for various domestic and foreign market applications. They are designed for seamless integration into equipment complying with international standards and are rigorously Hi-pot tested at 1,500 VRMS for optimal performance and safety.

Product Specifications

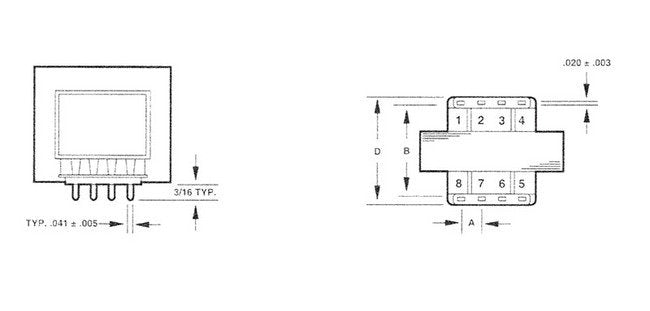

Specifications Depth D
2 1/4 in
Specifications Dimension A
1/4 in
Specifications Dimension B
2 7/64 in
Specifications Electrical Rating
24 V·A
Specifications Height H
1 3/8 in
Specifications Length L
1 5/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
60.0 V at 0.4 A
Specifications Secondary Voltage In Series
120.0 V CT at 0.2 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
13.3 oz
Technical Notes Technical Notes
The transformers with dual primaries permit their use in equipment for sale in both foreign and domestic markets.Hi-pot tested at 1,500 VRMS.
