Dual Primary & Secondary PC Mount Power Transformers
Dual Primary & Secondary PC Mount Power Transformers
SKU:POW-25f4d2
Transform power efficiently with our Dual Primary & Secondary PC Mount Power Transformers. Ideal for PC board and solid state designs.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Dual Primary & Secondary PC Mount Power Transformers
$49.99
Quantity: 1
Claim Your Seller Account
Dual Primary & Secondary PC Mount Power Transformers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

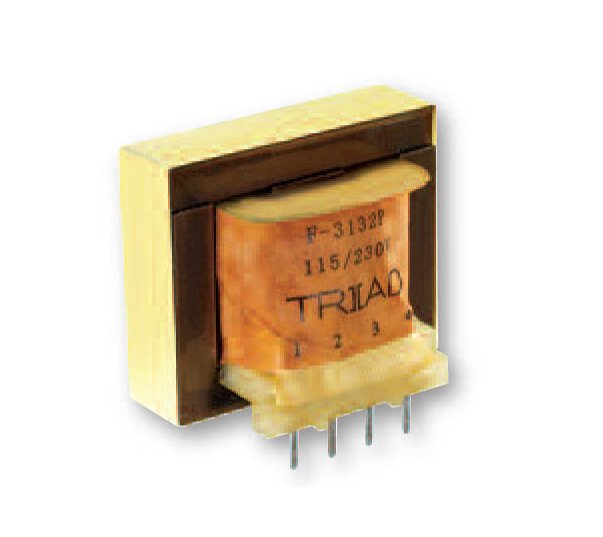

Enhance your PC board and solid state power supply designs with our Dual Primary & Secondary PC Mount Power Transformers. Perfect for power, control, and instrumentation applications, these transformers feature dual primary options for global compatibility. With electrical ratings of 24 VA, and secondary voltages in both series (12.6 V CT at 2.0 A) and parallel (6.3 V at 4.0 A), our transformers are versatile and efficient. Hi-pot tested at 1,500 VRMS, our transformers meet international standards for safety and performance.
Product Specifications

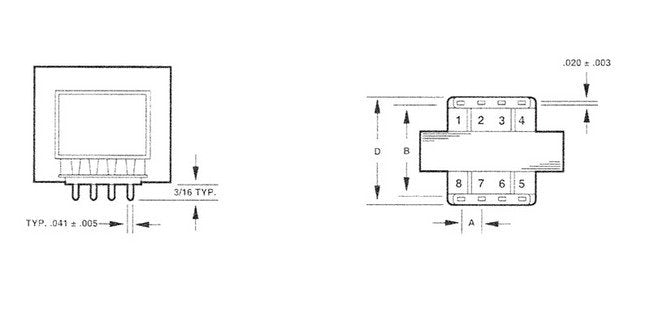

Specifications Depth D
2 1/4 in
Specifications Dimension A
1/4 in
Specifications Dimension B
2 7/64 in
Specifications Electrical Rating
24 V·A
Specifications Height H
1 3/8 in
Specifications Length L
1 5/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
6.3 V at 4.0 A
Specifications Secondary Voltage In Series
12.6 V CT at 2.0 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
13.3 oz
Technical Notes Technical Notes
The transformers with dual primaries permit their use in equipment for sale in both foreign and domestic markets.Hi-pot tested at 1,500 VRMS.
