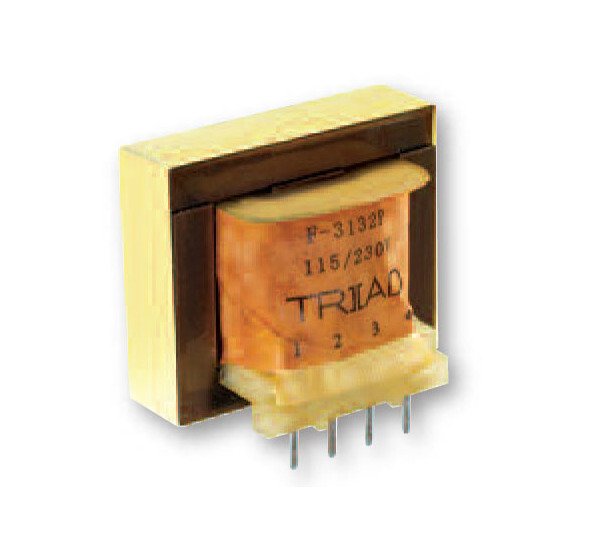

Upgrade your power supply designs with our Dual Primary, Dual Secondary PC Mount Power Transformers. These transformers, with single or dual primaries and dual center-tapped secondary configurations, are ideal for power, control, and instrumentation applications. With an electrical rating of 24 VA and dual primary voltage options for global compatibility, these transformers are hi-pot tested at 1,500 VRMS to meet stringent quality standards.
Product Specifications

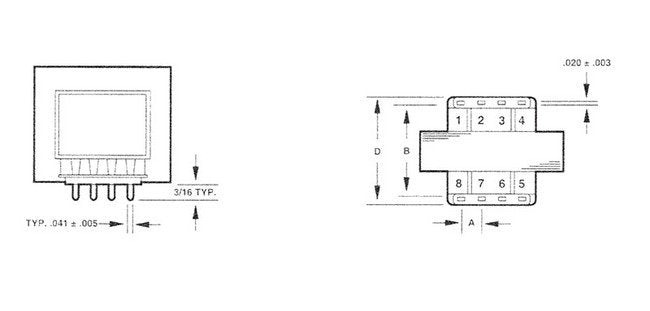

Specifications Depth D
2 1/4 in
Specifications Dimension A
1/4 in
Specifications Dimension B
2 7/64 in
Specifications Electrical Rating
24 V·A
Specifications Height H
1 3/8 in
Specifications Length L
1 5/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
20.0 V at 1.2 A
Specifications Secondary Voltage In Series
40.0 V CT at 0.6 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
13.3 oz
Technical Notes Technical Notes
The transformers with dual primaries permit their use in equipment for sale in both foreign and domestic markets.Hi-pot tested at 1,500 VRMS.
