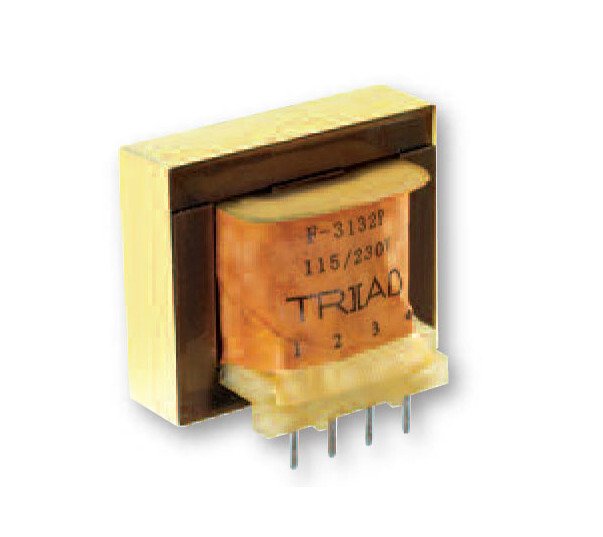

Equipped with dual primary and dual center-tapped secondary configurations, these power transformers by Triad are ideal for PC board and solid-state power supply designs. Meeting power, control, and instrumentation needs, they offer versatility through their single or dual primary setup. With an electrical rating of 24 VA, 115V/230V primary voltage options, and dual winding configurations, these transformers are suitable for both domestic and international markets. Additionally, each transformer undergoes a hi-pot test at 1,500 VRMS, ensuring reliable performance and compliance with industry standards.
Product Specifications

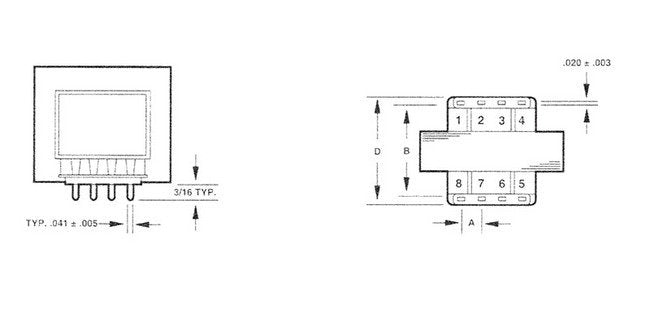

Specifications Depth D
2 1/4 in
Specifications Dimension A
1/4 in
Specifications Dimension B
2 7/64 in
Specifications Electrical Rating
24 V·A
Specifications Height H
1 3/8 in
Specifications Length L
1 5/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
5.0 V at 4.8 A
Specifications Secondary Voltage In Series
10.0 V CT at 2.4 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
13.3 oz
Technical Notes Technical Notes
The transformers with dual primaries permit their use in equipment for sale in both foreign and domestic markets.Hi-pot tested at 1,500 VRMS.
